Aluminium Alloy Woodworking Perforation Locator for Precise Board Connection and Installation

This specialised woodworking tool is engineered to assist in the accurate creation of holes for concealed joinery, a common requirement in furniture making, cabinet installation, and carpentry. The perforation locator, constructed from black aluminium alloy, holds drill bits and guiding sleeves to ensure holes are drilled at the correct depth, angle, and alignment for strong board connections. Its primary function is to simplify the process of creating matching holes in two pieces of wood, which is essential for dowel joints, certain fastener types, and other hidden connection methods. By providing a fixed guide system, it helps woodworkers of varying skill levels achieve more professional and reliable results than freehand drilling, reducing material waste from misaligned holes.

Features and Construction

The tool's design focuses on providing a stable platform for precise drilling operations in wood. Its construction and included accessories are tailored to handle a variety of common dowel and fastener sizes used in workshop projects.

Material and Build

The main body of the perforation locator is made from aluminium alloy, finished in black. This material choice offers a good balance between weight and rigidity. A lightweight tool is easier to handle and position accurately on the workpiece, while sufficient rigidity prevents the guide from flexing under pressure, which is crucial for maintaining the intended 15-degree drilling angle. The alloy construction also provides resistance to corrosion from workshop environments and handling.

Size and Practical Fit

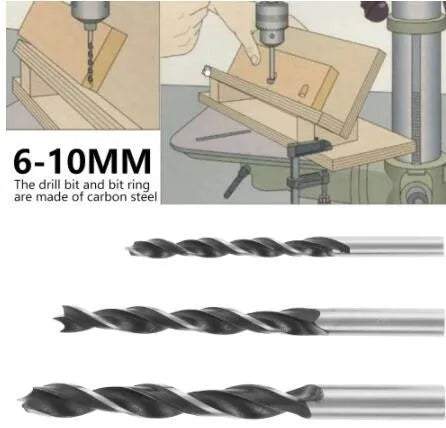

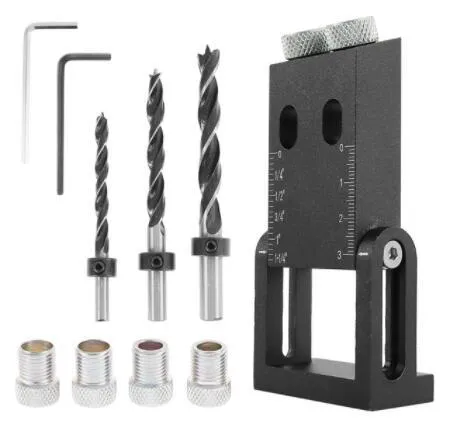

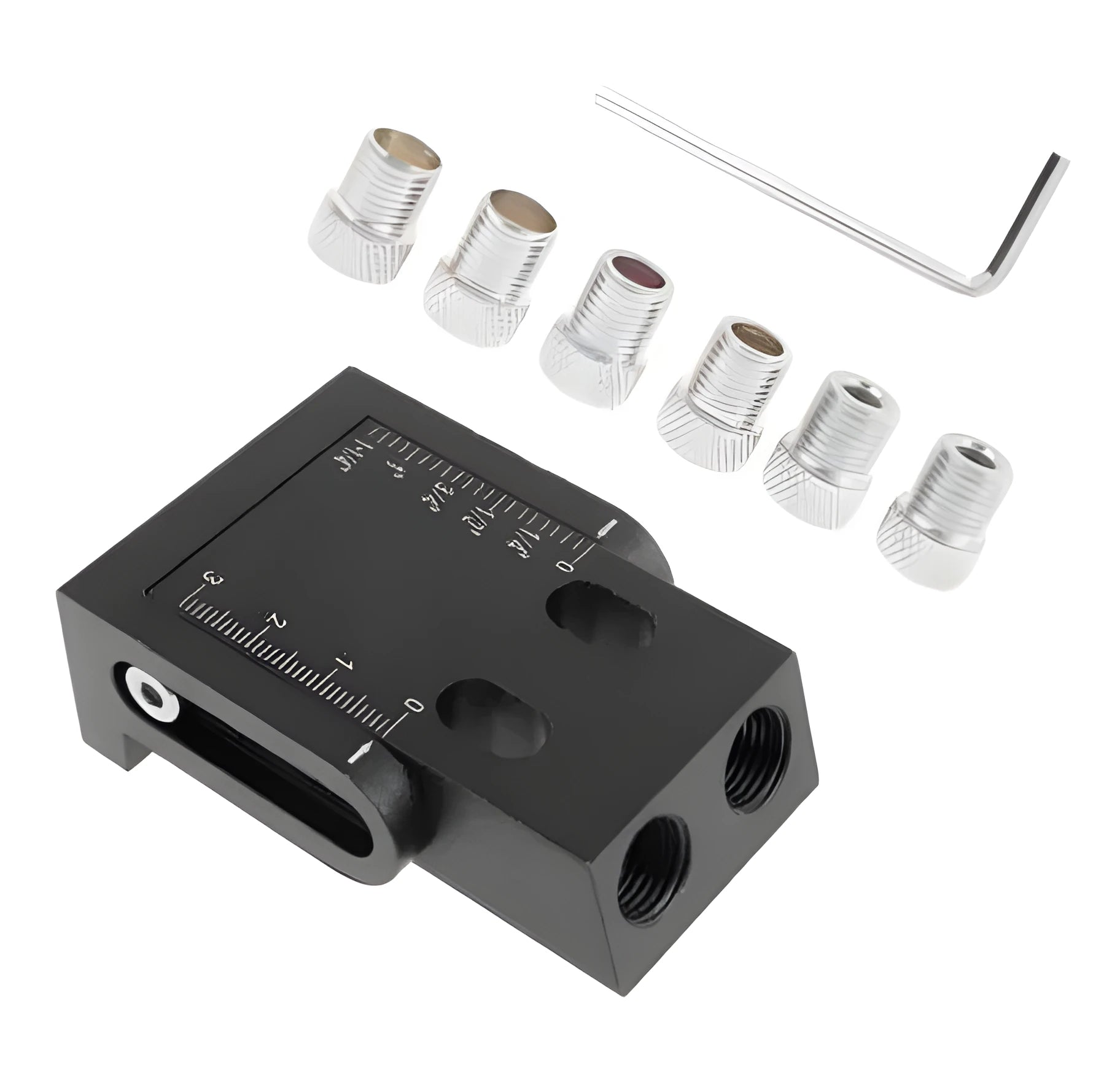

The tool accommodates a specific range of hole sizes through its included accessories. It comes with five drill bits that cover diameters from 6mm up to 10mm. Accompanying these are three sleeves with internal diameters of 6mm, 8mm, and 10mm. These sleeves act as guides and bushings, ensuring the drill bit remains centred and travels at the correct 15-degree angle. This range of sizes covers many standard dowel diameters and allows for some flexibility in project planning. The tool itself is a handheld unit, designed to be positioned against the edge or face of a wood board to locate the drilling point accurately.

Uses and Placement

The perforation locator is a task-specific tool aimed at improving the quality and speed of certain woodworking joints. Its application is most relevant where two boards need to be joined edge-to-edge, face-to-face, or at right angles with hidden fixings.

Event or Professional Use

In a professional workshop or for serious DIY projects requiring high-quality finishes, such as building cabinets, bookshelves, or tables, this tool adds consistency. The 15-degree angle is a common feature in certain types of concealed fastener systems and angled dowel joints, which are prized for their strength and clean appearance without visible screws or brackets. Using a dedicated locator for these holes ensures every joint in a piece of furniture has identical geometry, which is critical for proper assembly and structural integrity. It turns a skill-dependent task into a more repeatable process.

Everyday Home Use

For home woodworking enthusiasts tackling smaller projects like picture frames, simple boxes, or repairing furniture, the locator simplifies a tricky step. Drilling a perfectly aligned angled hole freehand is challenging; this tool removes much of the guesswork. The variety of bit and sleeve sizes means a single tool can be used for different projects over time, from using smaller 6mm dowels in delicate work to 10mm dowels for sturdier joints. It helps achieve stronger, neater results in common joinery tasks without requiring a large workshop or multiple specialised jigs.

Benefits and Buying Value

The value of this tool lies in its ability to improve accuracy and repeatability in a specific woodworking operation. It addresses a common point of difficulty that can compromise the strength and appearance of a project.

Reuse and Low Maintenance

As a metal-bodied tool with replaceable drill bits, it is built for reuse across many projects. The aluminium alloy requires minimal maintenance—simply keeping it clean of wood dust and shavings is sufficient. The drill bits are standard items that can be sharpened or replaced individually if they become dull, extending the overall life of the kit. The tool does not require batteries, complex setup, or calibration, making it ready to use whenever a joinery task arises.

Why Choose This Product

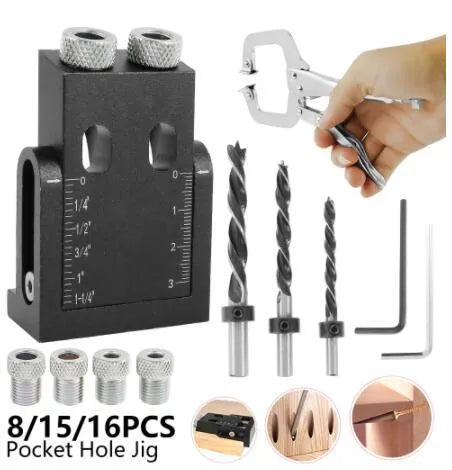

This perforation locator offers a focused solution for a specific woodworking challenge: creating accurately aligned, angled holes for board connections. Its key differentiators are the included range of drill bits (6-10mm) and guiding sleeves (6, 8, 10mm) paired with the fixed 15-degree operation. For someone regularly using dowels or specific concealed fasteners, this can save time, reduce frustration from failed joints, and improve the quality of finished projects compared to improvised methods. The available options (15PC, 16PC, 8PC) suggest there are different kit configurations, though the exact component list for each would need clarification to understand the full scope of what is included.
