1.6 Inch LCD Display with Backlight Switch for Raspberry Pi CPU Monitoring

This 1.6-inch LCD display module offers a straightforward solution for monitoring your Raspberry Pi's vital statistics. By providing a dedicated hardware readout for CPU information, it removes the dependency on software windows or remote connections for basic system checks. The inclusion of a manual backlight switch gives you direct control over the display's visibility and power draw, a practical feature for integrated smart home projects or discreet server setups where constant illumination isn't always necessary.

Features and Build Quality of the LCD Module

This section details the specific components and design choices that make this display a functional tool for Raspberry Pi enthusiasts and smart home builders.

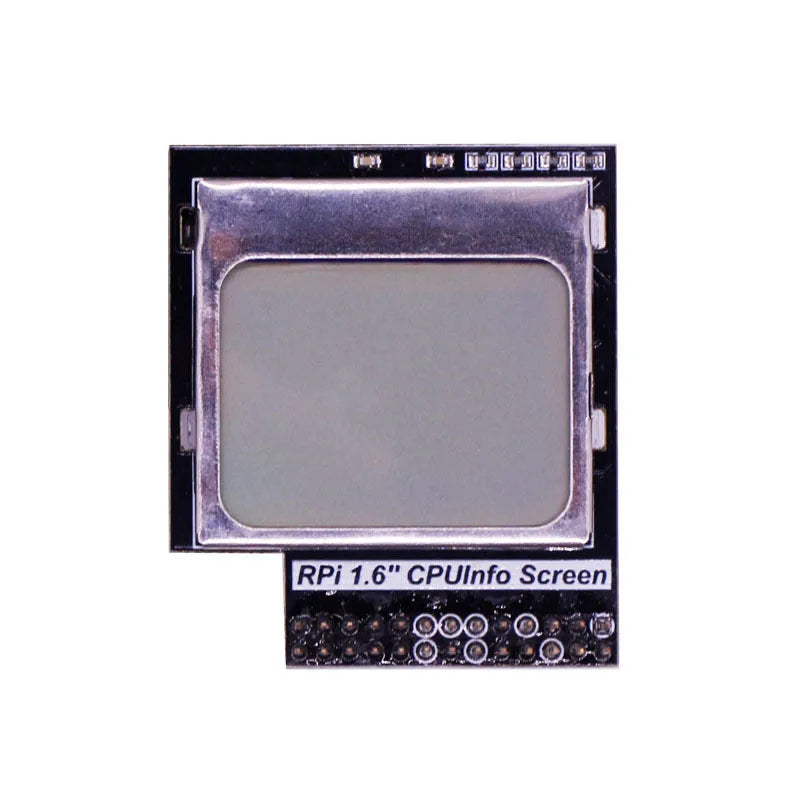

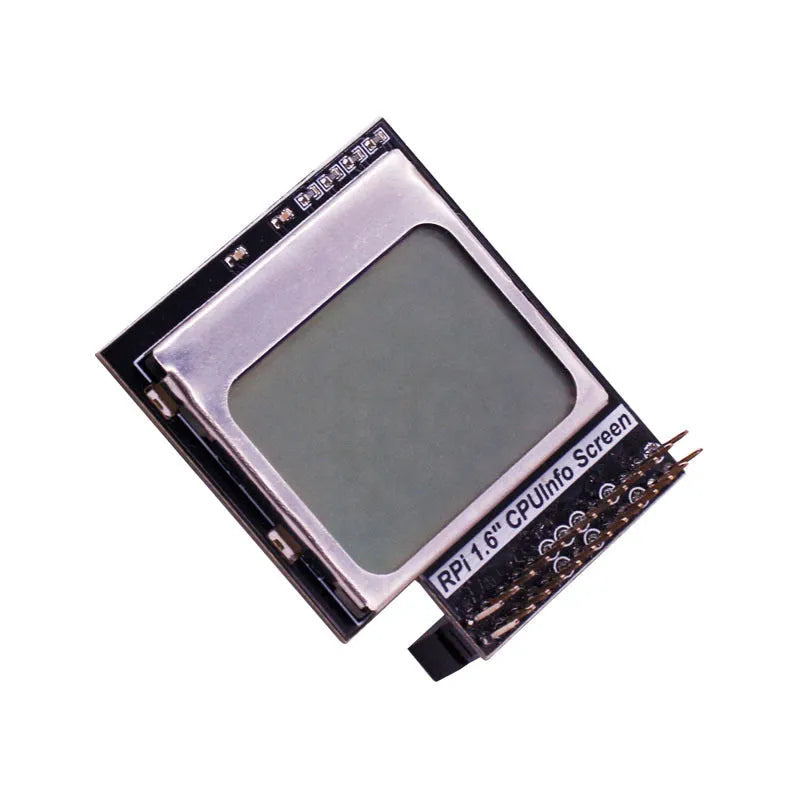

Compact 1.6-Inch Display Design

The core of the module is a 1.6-inch crystal LCD panel. This size provides sufficient space to display several lines of text or numerical data—ideal for showing CPU temperature, usage percentages, and clock speed—without occupying excessive physical space on your project board or enclosure. The crystal display technology ensures good contrast for the characters against the background, making the data readable under various lighting conditions when the backlight is active.

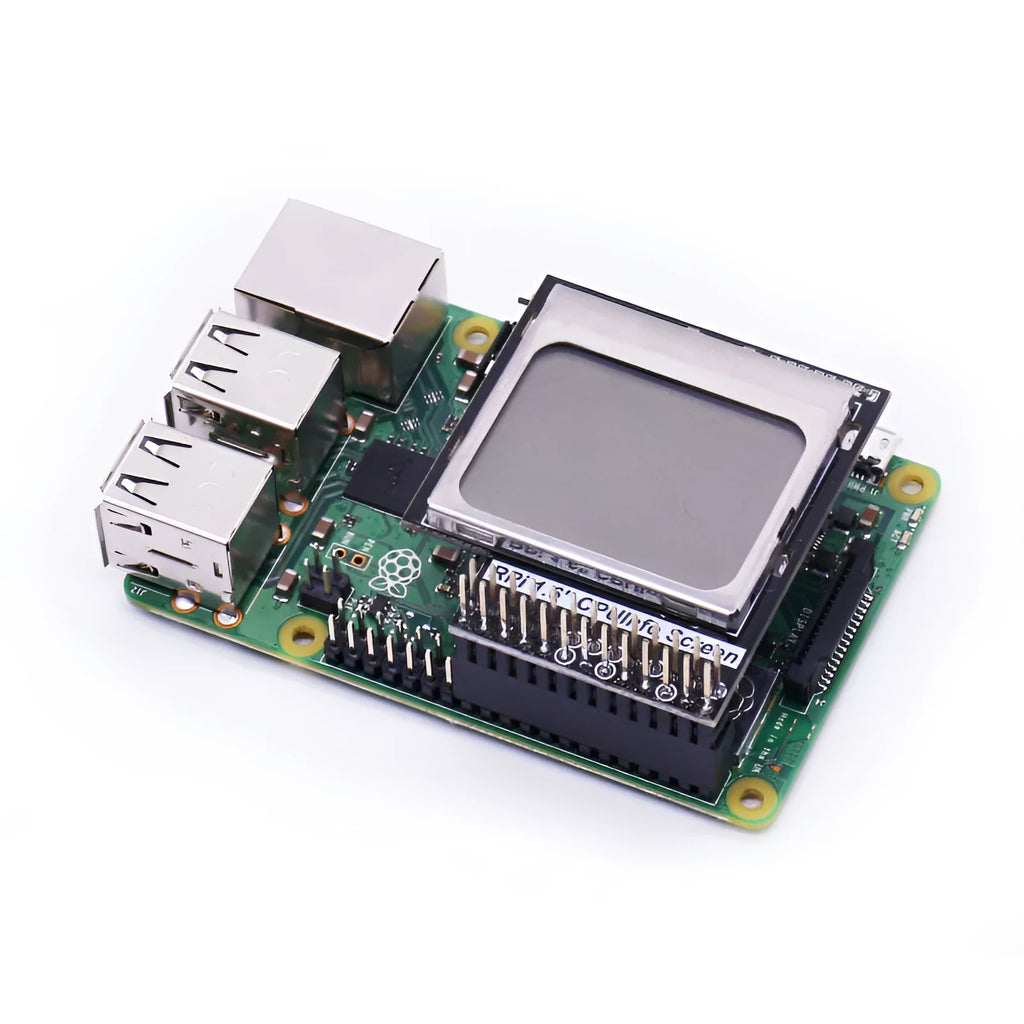

Direct GPIO Connection and Integration

The module connects directly to the Raspberry Pi's General-Purpose Input/Output (GPIO) pins. This direct connection method typically means lower latency for data updates compared to some USB-connected displays and avoids using a valuable USB port. For common use cases, basic functionality often works without installing complex kernel drivers, allowing for a quicker setup using pre-written Python scripts or libraries from the Raspberry Pi community to push system data to the screen.

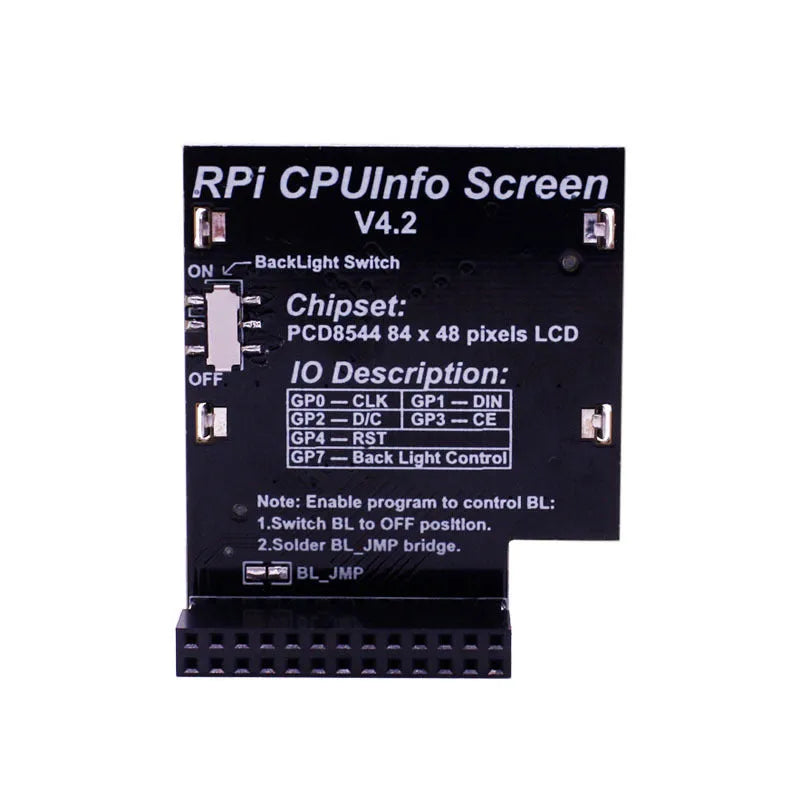

Manual Backlight Control Switch

A physical switch on the module controls the LCD's backlight. This is a hardware-level feature, not a software command, allowing you to instantly turn the screen's illumination on or off regardless of the Pi's software state. This contributes to the module's durability for long-term use, as the switch is a simple mechanical component, and allows for immediate power saving or light reduction in a dark room without needing to alter your monitoring script.

Practical Applications for the LCD Display

From professional prototyping to personal projects, this display serves several specific roles where a dedicated, low-overhead system readout is beneficial.

Smart Home Control Panel Integration

In a smart home application, a Raspberry Pi often acts as a central hub or a dedicated controller for a specific system (like lighting, climate, or security). Mounting this LCD display on the front of a project case allows you to create a custom control panel that shows the hub's status—confirming it's online, displaying CPU temperature to ensure it's not overheating in an enclosed space, or showing network connectivity status—all without needing to open a separate app on a phone or computer.

Everyday Server and Hobbyist Monitoring

For users running a Raspberry Pi as a home server for files, media, or web services, this display offers constant, passive monitoring. The feeling of simply glancing over to see a stable, low CPU temperature provides reassurance that your services are running smoothly without excessive load. When the backlight is switched off, the module draws minimal extra power, making it a sensible addition for an always-on device where you only need to check the display occasionally.

Versatility in Educational and Development Projects

Beyond system monitoring, the display's ability to show custom text and data makes it versatile for other projects. It can be repurposed as a simple message board, a sensor readout for environmental data (like temperature and humidity from connected sensors), or a status display for a 3D printer or other DIY hardware controlled by the Raspberry Pi. The straightforward text-based output is easy to program for beginners learning Python or electronics integration.

Key Benefits of Adding This Display

Integrating this hardware module into your setup provides tangible advantages over purely software-based monitoring methods.

Value Through Simplified Diagnostics

Satisfaction from Enhanced Project ControlThe satisfaction comes from having direct, physical insight into your system. The confidence that your Raspberry Pi is operating within safe parameters is provided by the real-time numbers on the screen, not just an assumption. The tactile control of the backlight switch also adds a layer of direct interaction, letting you manage the device's presence in your workspace—turning it into a visible dashboard when needed and a discreet component when not.

Call to Action for Your Next Build

If you are building a Raspberry Pi-based project that benefits from constant, low-impact system feedback—be it a smart home hub, a network appliance, or a prototyping station—adding this 1.6-inch LCD display is a logical step. It provides specific, measurable data (like CPU temperature in degrees Celsius) through a dedicated hardware channel, freeing up software resources and giving you immediate visual confirmation of your system's health with the option to control its illumination manually.
