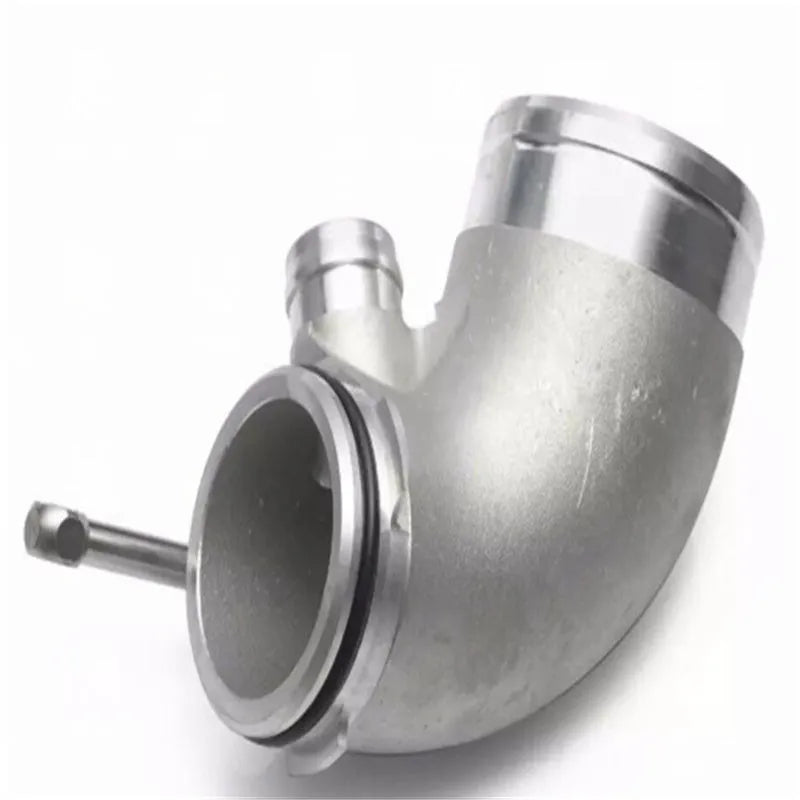

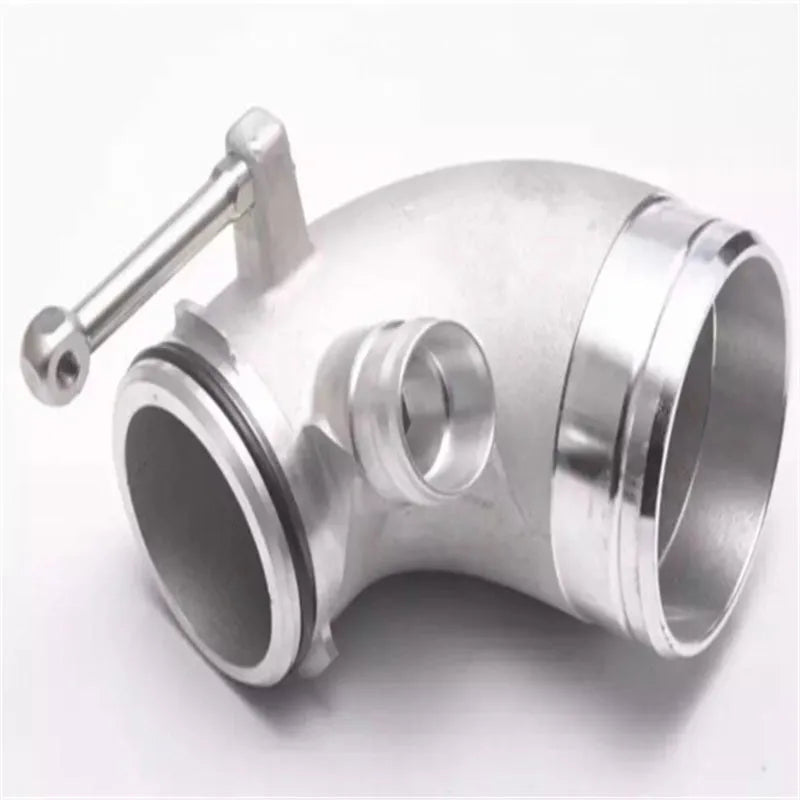

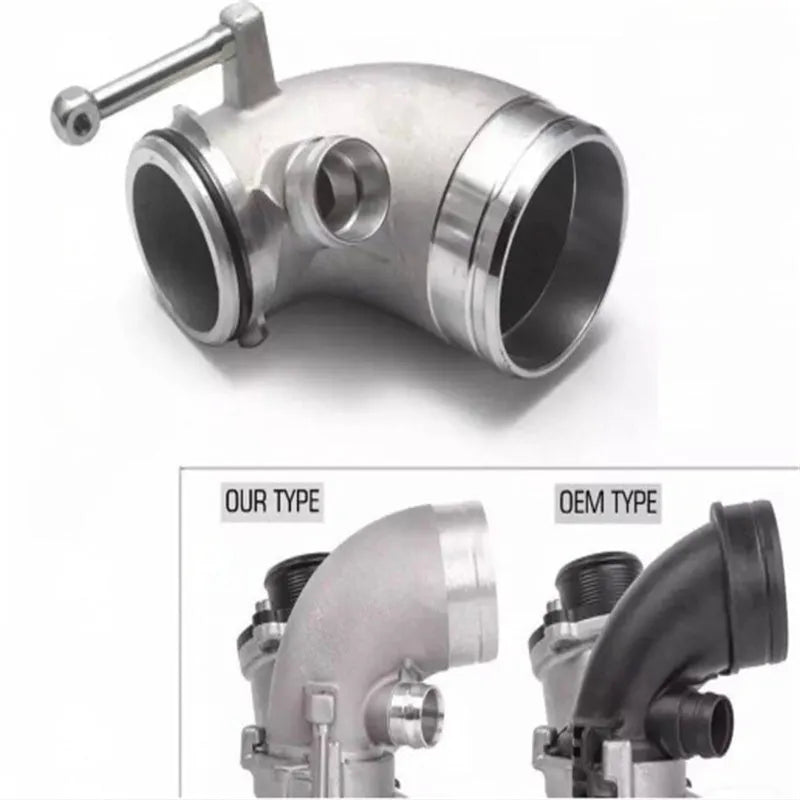

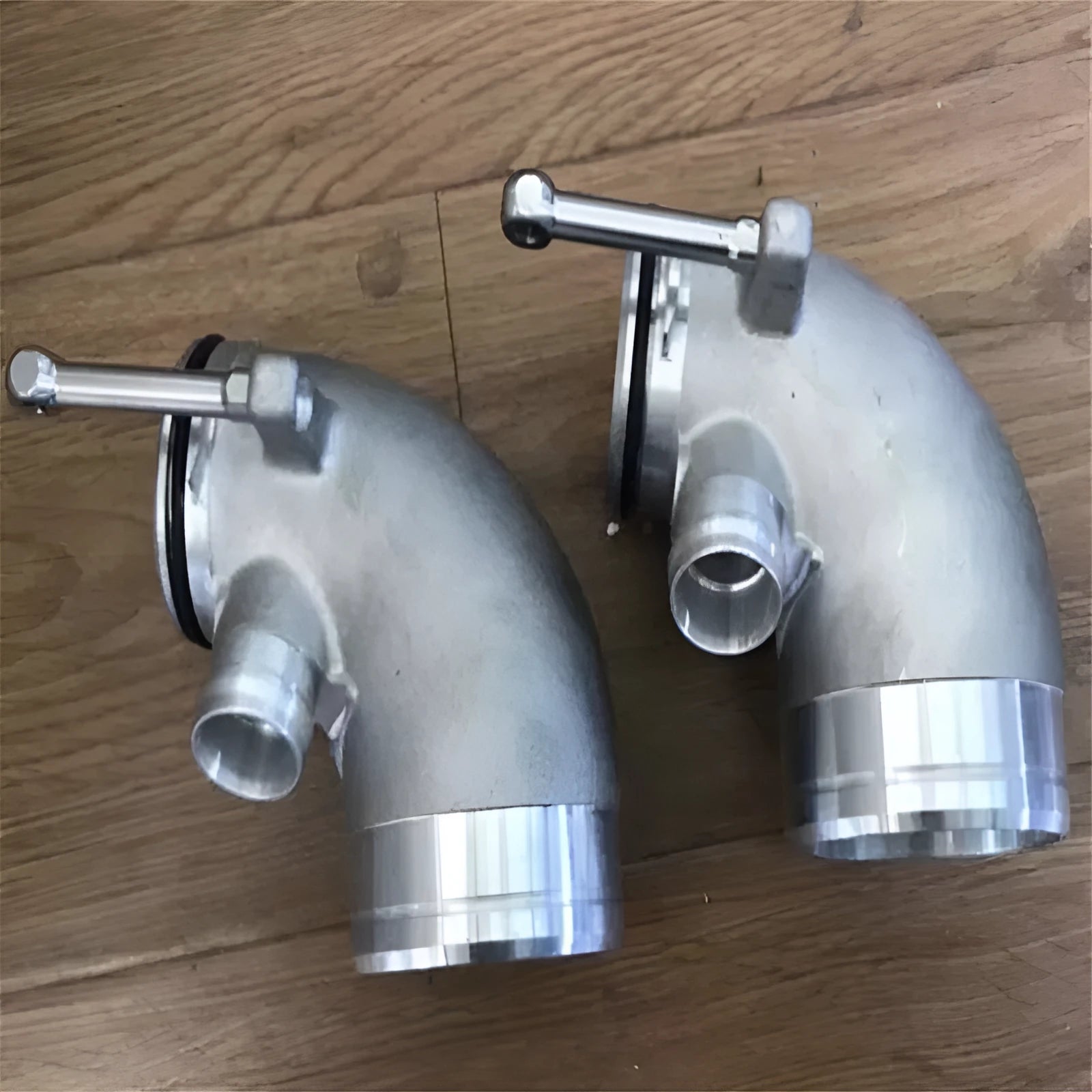

Aluminium Alloy Turbo Pipe Elbow for Lateral Engine Positioning Applications

This automotive component is a specifically shaped section of turbocharger intercooler piping designed to connect other parts of the forced induction system. Its primary function is to route pressurised, cooled air from the intercooler to the engine's intake manifold. The key design feature is its 90-degree bend, which is intended to fit the spatial requirements of vehicles with a lateral engine layout. Made from aluminium alloy, it offers a practical solution for modified performance vehicles or replacement applications where this particular pipe configuration is needed.

Features and Construction

This turbo pipe elbow is defined by its construction and intended application. It is not a universal part but one designed with a specific vehicle configuration in mind, making fitment a primary consideration.

Material and Build

The elbow is constructed entirely from aluminium alloy. The manufacturing process is described as integrated moulding, meaning the pipe is formed as a single, seamless piece. This method avoids the use of welding joints, which can be potential weak points or sources of leaks in a pressurised intake system. The aluminium material contributes to a lighter overall component weight compared to some alternatives and offers good thermal conductivity.

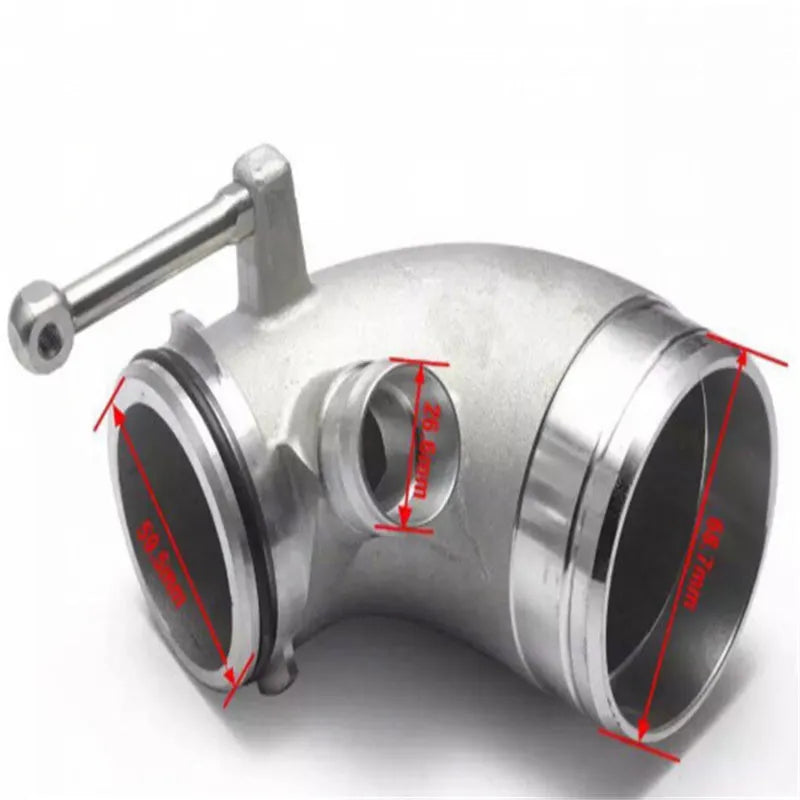

Size and Practical Fit

The source text specifies this is a modified plus-sized tube. This indicates it has an increased internal diameter compared to a standard or original equipment part, which is a common modification to reduce airflow restriction in performance applications. The defining 90-degree angle is crucial for its application in lateral engine positioning, where space constraints often necessitate tight, specific bends to route piping effectively around other engine bay components.

Uses and Placement

This component serves a dedicated role within a vehicle's turbocharging system. Its use is contingent on the engine's orientation within the chassis and the layout of the existing or planned intercooler piping.

Event or Professional Use

In motorsport or performance tuning environments, replacing factory intercooler pipes with aftermarket options like this aluminium elbow is a standard practice. The goals are often to improve airflow efficiency, ensure reliable connections under high boost pressure, and tailor the piping kit to a custom engine setup or a specific vehicle model where lateral engine mounting is used.

Everyday Home Use

For the enthusiast working on their own vehicle, this part is a solution for a specific problem: replacing a damaged or restrictive factory elbow, or completing a custom intercooler upgrade. It is relevant for owners of vehicles known to have transversely or laterally mounted engines who are undertaking performance modifications or need a durable replacement part.

Benefits and Buying Value

The value of this product lies in its material choice, construction method, and specific design intent. It provides a functional upgrade or replacement based on concrete engineering principles rather than vague performance claims.

Reuse and Low Maintenance

The durable aluminium alloy construction means the component is not a consumable item and is designed for long-term use. The lack of welds minimises maintenance concerns related to joint fatigue or cracking. Proper installation with suitable clamps and routine checks of the entire intake system are the primary maintenance requirements.

Why Choose This Product

This elbow is chosen for its application-specific 90-degree design for lateral engines and its seamless aluminium construction. It represents a pragmatic selection for individuals who have identified the need for this exact pipe shape and value the reliability of a one-piece moulded component over a fabricated one for their turbocharged vehicle's intake system.
