TB6560 Stepper Motor Driver: 3A Control for CNC Engraving and SMT Placement Machines

This TB6560-based driver module is engineered to provide precise motion control in automated equipment where reliable stepper motor performance is critical. It has been tested and applied in professional settings such as CNC engraving machines and surface-mount technology (SMT) placement machines, offering a solution for users who require a dedicated driver for small to medium-sized motors. The board's core component is the Toshiba TB6560AHQ chip, a dedicated stepper motor driver IC that manages the power sequencing and control logic. Its design supports a broad input voltage, accepts standard step and direction signals, and includes several built-in safeguards, making it a practical choice for integrating into existing machine designs or for building new motion control systems from the ground up.

Features and Construction

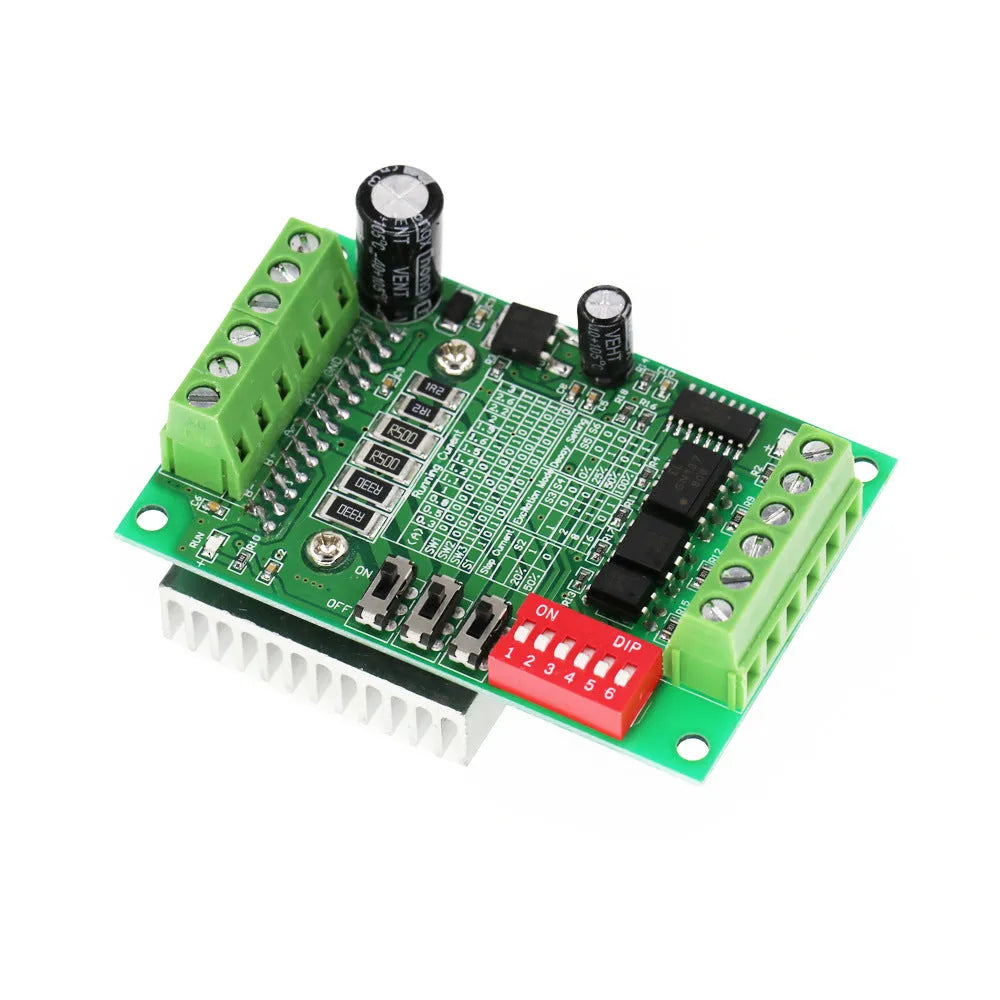

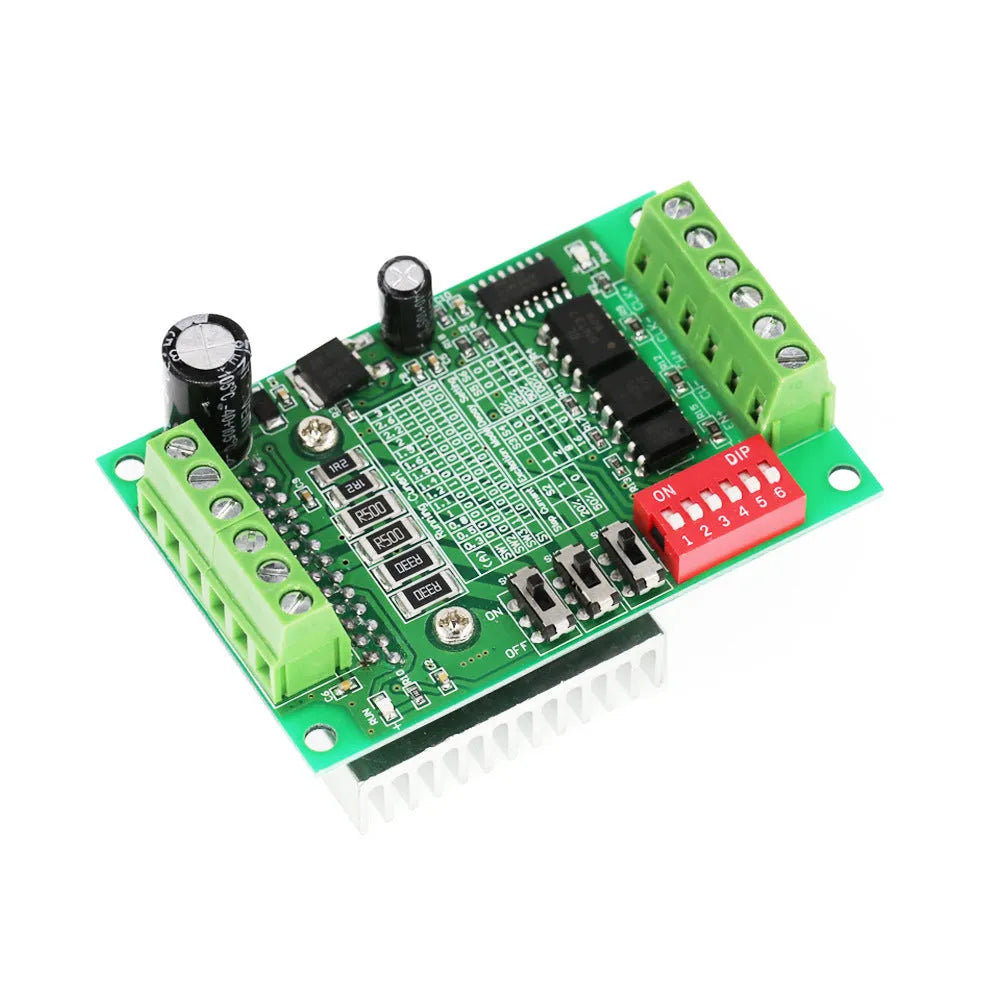

The driver's construction centres on delivering controlled power to two-phase stepper motors while incorporating features aimed at improving usability and system reliability. The layout includes clearly marked terminals for motor, power, and control signal connections, which can aid installation. The use of a thick, dense aluminium heatsink is a noted feature for dissipating heat generated by the TB6560AHQ chip during operation.

Material and Build

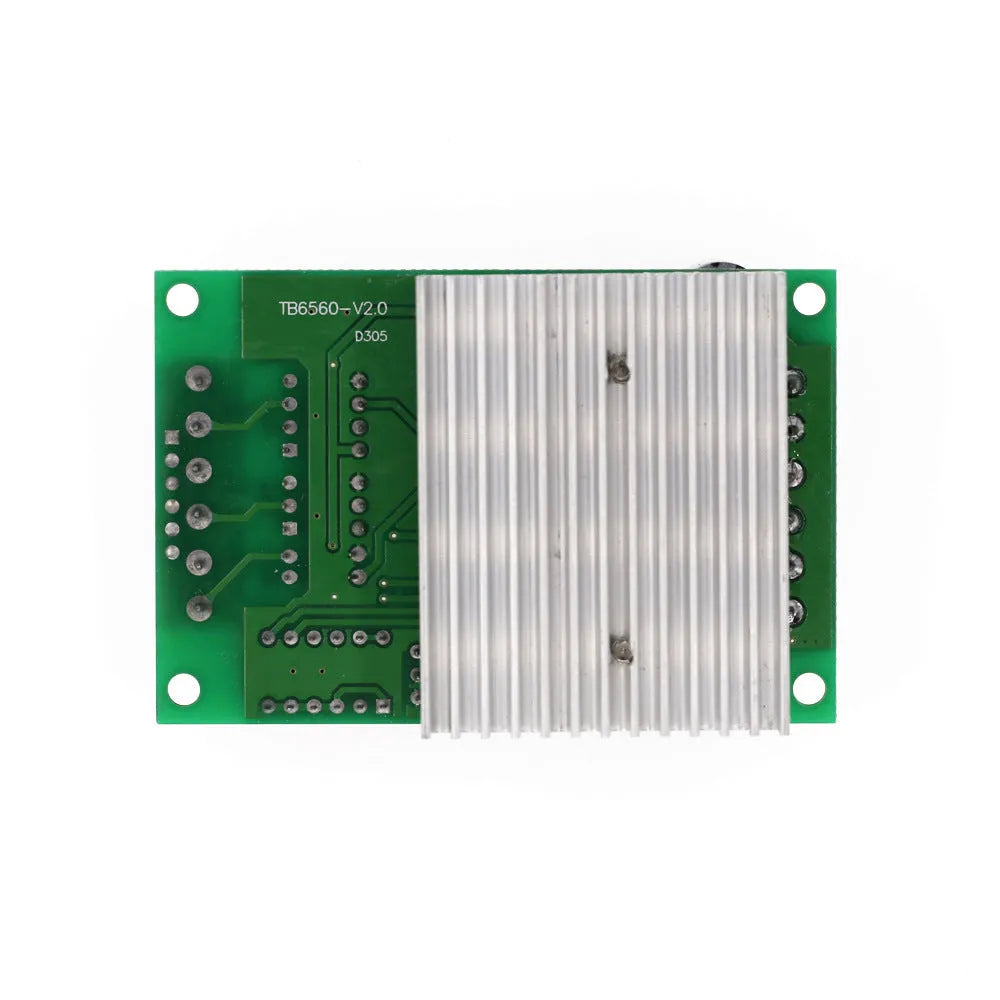

The module is built on a standard printed circuit board (PCB) that hosts the primary Toshiba TB6560AHQ integrated circuit. A key supporting component is the 6N137 high-speed optocoupler, which provides galvanic isolation for the step and direction input signals, helping to prevent noise interference and potential ground loop issues that can occur in electrically noisy environments like those found with CNC machinery. The aluminium heatsink is directly attached to the driver IC to manage thermal output. The board's construction is focused on functionality, with components selected to support the stated current rating and protection features.

Size and Practical Fit

With compact dimensions of 75mm in length, 50mm in width, and a height of 35mm, the driver board is designed to fit into control cabinets and enclosures where space may be limited. This size makes it suitable for retrofitting into existing machine panels or for use in custom-built projects like 3D printers or small CNC routers. The physical footprint is a practical consideration for hobbyists and professionals alike, as it allows for easier integration without requiring extensive modifications to the host equipment's layout.

Uses and Placement

This driver is targeted at applications requiring precise positional control of stepper motors. Its tested use in engraving and pick-and-place machines highlights its suitability for tasks where accuracy and repeatability are important. The specifications guide its appropriate application, ensuring it matches the electrical and mechanical requirements of the motor and the machine.

Event or Professional Use

In professional or light industrial settings such as operating a CNC engraving machine for sign making or an SMT placement machine for electronics assembly, this driver provides the necessary interface between a motion controller and the mechanical actuators. The 3A current rating and support for 42/57 frame motors cover a common range of stepper motors used in such equipment. The ability to select different microstep resolutions (from full step to 1/16 step) allows fine-tuning of motion smoothness and resolution to suit the specific precision demands of the task, whether it's detailed engraving work or accurate component placement.

Everyday Home Use

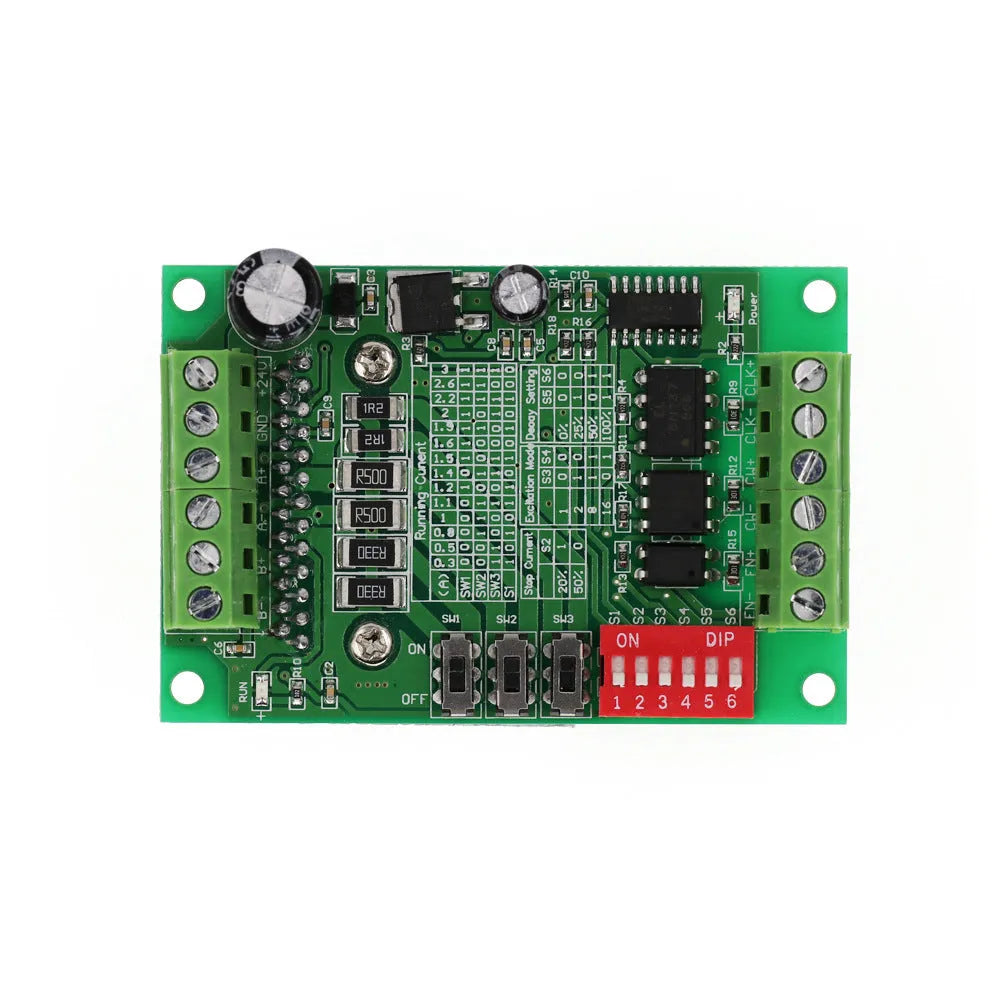

For DIY enthusiasts, makers, and hobbyists working on projects like custom CNC machines, 3D printers, or automated tools, this driver offers a capable control element. The wide 10V-35V DC input range provides flexibility in choosing a power supply, which can be an important factor in home workshops. Features like the automatic half-current function, which reduces the holding current when the motor is stationary, can help manage power consumption and reduce motor heating during idle periods in prolonged use. The clearly printed settings on the board assist with configuration without constant reference to a manual.

Benefits and Buying Value

The value of this driver lies in its specific combination of supported features, protective circuitry, and its designated application range. It is presented as a tested component for particular types of machinery, offering a direct solution for those needs.

Reuse and Low Maintenance

The driver is a solid-state electronic module with no moving parts, contributing to its potential for long-term use with minimal maintenance. The integrated protective features within the TB6560AHQ chip—such as low-voltage shutdown, over-temperature, and over-current protection—are designed to safeguard the chip itself from common electrical fault conditions, which can enhance the module's operational lifespan within a properly designed system. Careful installation and adherence to the specified voltage and current limits are the primary requirements for sustained, reliable performance.

Why Choose This Product

This driver module is a match for users who need to control stepper motors up to 3A within the common 42 and 57 size standards, particularly for CNC or automated positioning applications. Its advantages include the use of a name-brand driver IC (Toshiba TB6560AHQ) with inherent protection circuits, the inclusion of signal isolation via a high-speed optocoupler, and a range of microstepping options for smoother motion. The critical point for users is to recognise its limits: it is not suitable for motors exceeding 3A, and it lacks additional external protection circuitry, meaning system design and wiring must be done diligently to avoid damaging the module.
