Aluminium Right Angle Positioning Block for Accurate Woodworking Jigsaw Fixturing

This solid aluminium right angle positioning block is engineered for woodworkers who demand precision. Machined from Aluminium Alloy 6061 to exacting tolerances, it provides a perfectly square 90° fixture for your jigsaw, ensuring cuts are accurate and repeatable. The inclusion of an engraved measurement scale directly on the tool speeds up layout work, turning complex setup into a simple, one-step process. With its substantial 40mm depth and large surface area, it offers a stable platform for workpieces, making it a reliable addition to any workshop focused on quality joinery and frame assembly.

Features and Build Quality of the Positioning Block

Every aspect of this positioning block is designed for functional performance in a workshop environment. From the choice of material to the machining process and added features like the integrated scale, the focus is on delivering measurable improvements to your workflow. The following sections detail the specific design, technical, and quality aspects that contribute to its reliability.

Precision Machined Aluminium Design

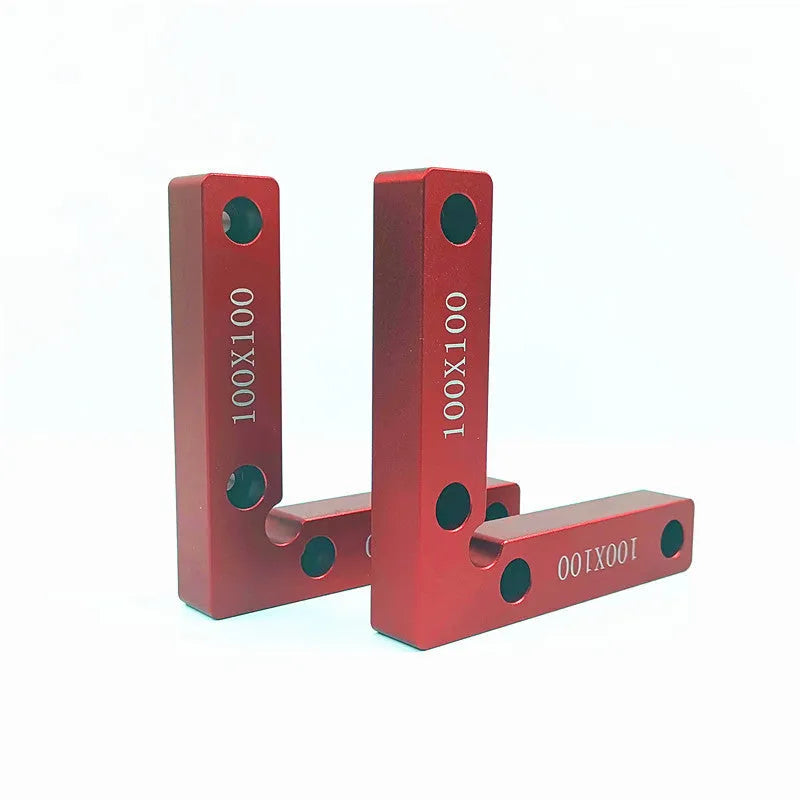

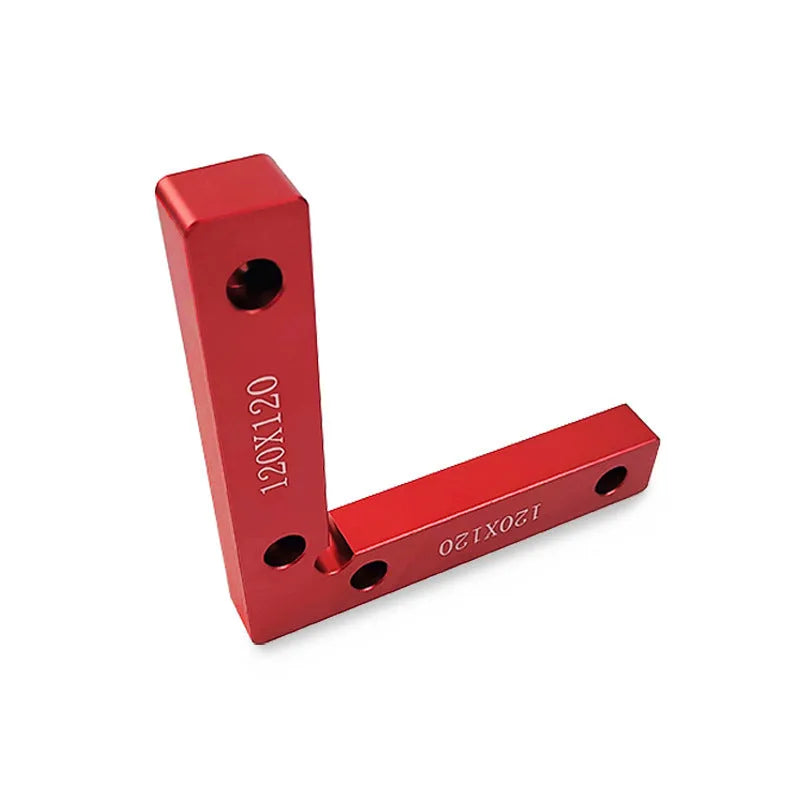

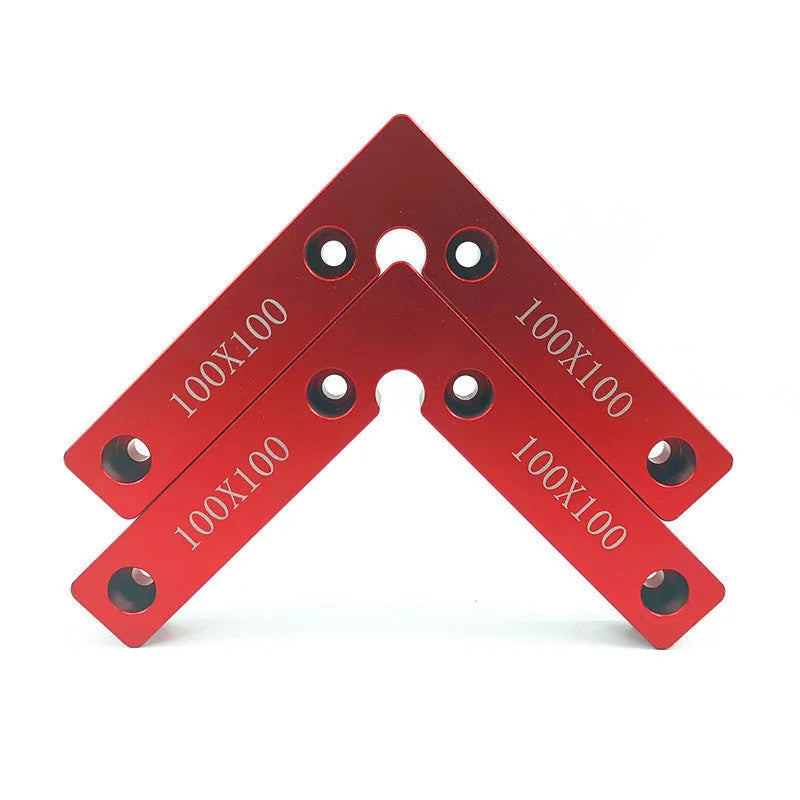

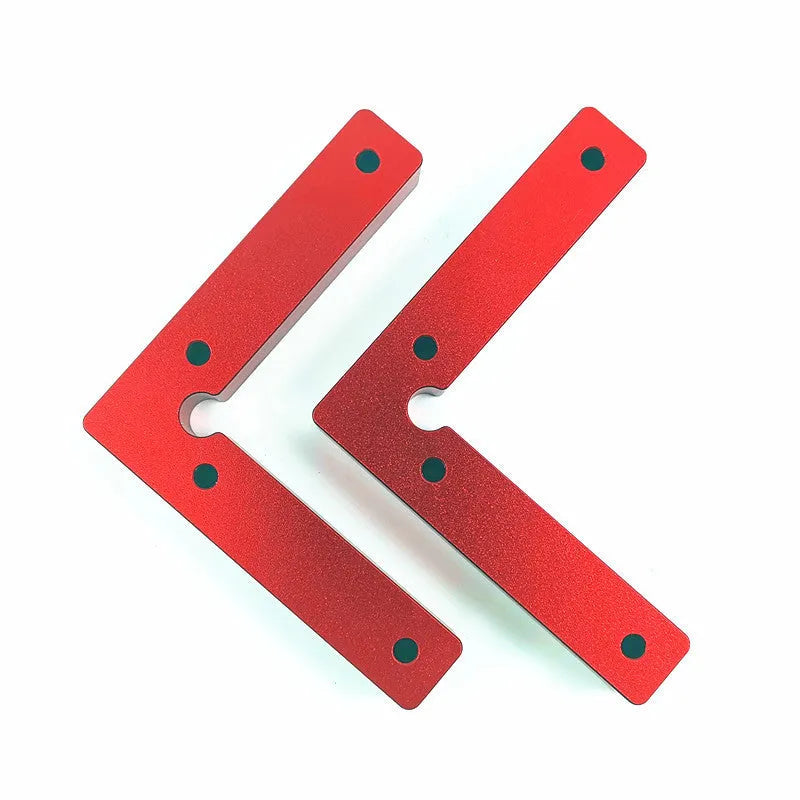

The block is CNC machined from a solid billet of Aluminium Alloy 6061, a material selected for its dimensional stability. This process guarantees the internal 90° angle is true and will not deviate, a critical factor for creating tight-fitting joints. The arms of the block measure either 100mm or 120mm internally, providing a versatile fixture point. The large, flat base measuring 130mm x 210mm ensures the block sits solidly on your bench without rocking, while the 40mm depth gives ample surface for clamps to grip without slipping.

Technical Specifications and Scale Accuracy

The primary technical feature is the machined 90° angle, with tolerances tight enough to ensure fixture accuracy. Complementing this is the accurately engraved measurement scale that runs along the length of the block's arms. This scale allows you to position stops or mark workpieces directly against the block, removing the need for a separate ruler or tape measure and reducing cumulative measurement errors. The block's weight, a direct result of its solid aluminium construction, adds to its stability during use.

Durable Construction for Workshop Longevity

The use of Aluminium Alloy 6061 provides inherent durability; it is resistant to corrosion and will not rust like steel alternatives, maintaining its appearance and function over time. The machining process creates smooth edges and faces that won't damage your workpieces. This construction means the block can withstand the repeated clamping and pressure of daily workshop use without deforming, ensuring it remains a trusted reference tool for years of projects.

Practical Applications in the Workshop

This positioning block is not a niche tool; its design lends itself to a wide range of common woodworking tasks where accuracy is paramount. Whether you are a professional crafting commissioned pieces or a dedicated hobbyist building furniture, it streamlines processes that typically require multiple tools and checks.

Professional Woodworking and Joinery

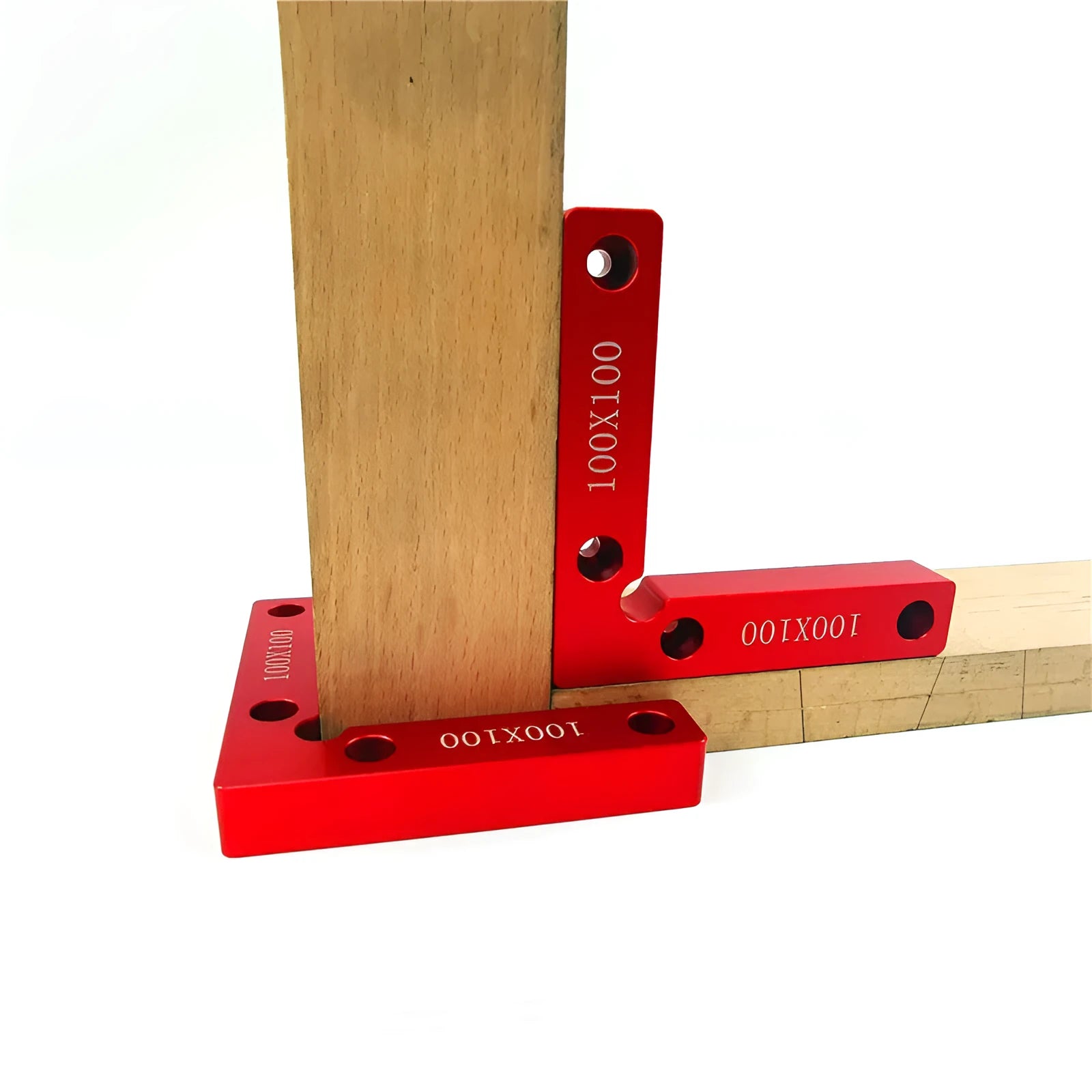

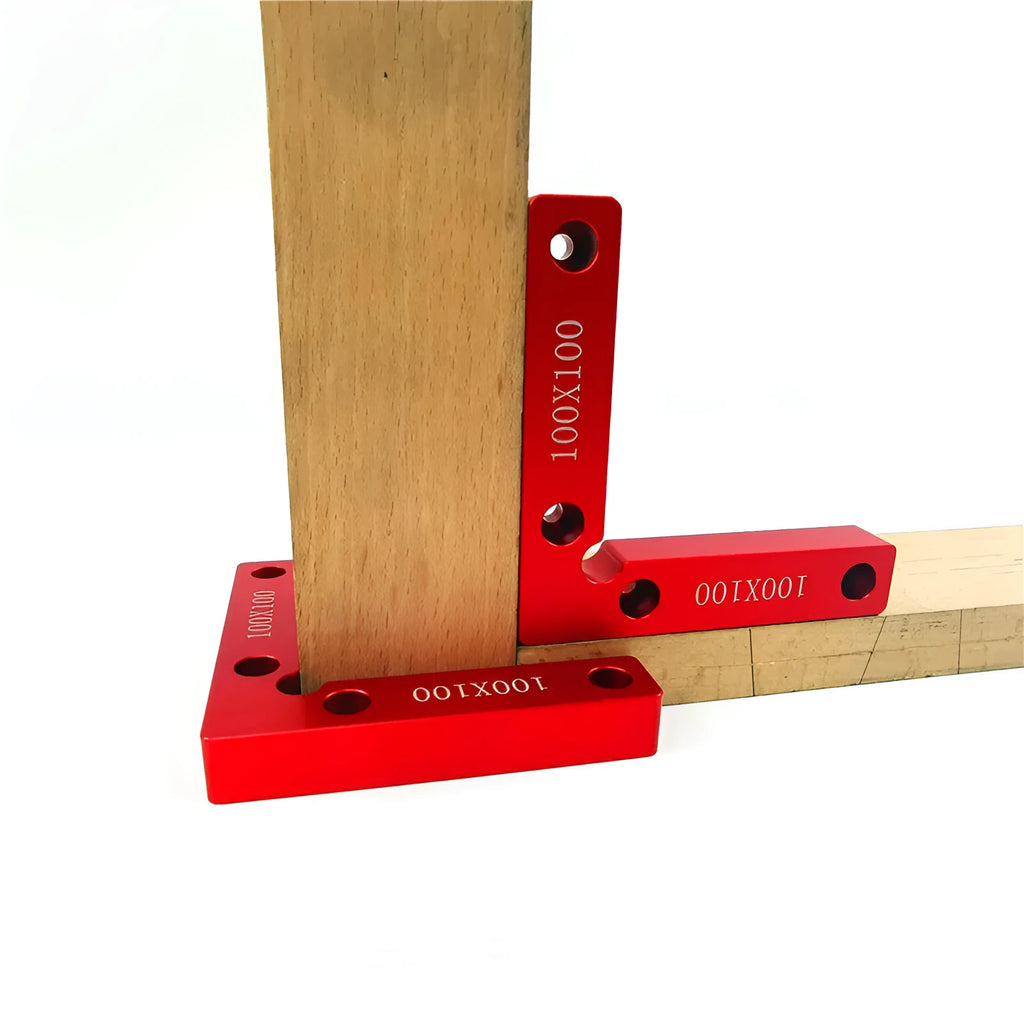

For professionals, time is money, and consistency is reputation. This block allows for the rapid setup of repeated crosscuts or mitre cuts on a jigsaw, ensuring every piece in a batch is identical. It is exceptionally useful for constructing cabinet frames, drawer boxes, or picture frames where squareness directly impacts the final product's quality and professional finish. The block turns a potentially time-consuming setup into a quick, reliable operation.

Everyday Hobbyist and DIY Projects

For the weekend woodworker, achieving professional-looking results can be challenging. This block provides a physical guide that instils confidence. The solid, cool-to-the-touch aluminium feels substantial in hand, and the positive location of the workpiece against the machined angle provides tangible reassurance before you make a cut. It simplifies projects like building shelves, bird boxes, or small furniture where square corners are essential for both aesthetics and structural integrity.

Versatility Beyond the Jigsaw

While designed as a jigsaw fixture, the block's precise right angle makes it a useful general workshop square for checking the assembly of smaller projects off the saw. It can also serve as a stable mounting point for temporary fences or stops when used with other tools, thanks to its flat surfaces and predictable geometry. Its simple, functional design makes it a versatile aid for any task requiring a guaranteed 90-degree reference.

Tangible Benefits for Your Workshop

Investing in dedicated, well-made tools like this positioning block pays dividends in the quality of your output and the efficiency of your process. The benefits extend beyond the first use, impacting your workflow on every subsequent project where precise right angles are needed.

Long-Term Value and Time Savings

Compared to makeshift blocks or constantly checking with a try square, this dedicated tool saves measurable time on every project. The integrated scale alone eliminates dozens of small measurement steps. Its durability means it won't need replacing, avoiding future costs. For the price of a few high-quality clamps, you gain a precision fixture that elevates the capability of the tools you already own, representing significant long-term value.

Confidence in Every Cut

The confidence that comes from using a precisely machined fixture is an emotional benefit rooted in technical specs. Knowing the block's angle is guaranteed by its CNC machining allows you to focus on the cut itself, not on doubting your setup. This peace of mind reduces errors and material waste, leading to a more satisfying and less frustrating building experience. It turns a critical part of the process from a variable into a constant.

A Direct Path to Improved Results

If you find yourself fettling joints or correcting misaligned frames, the root cause is often inaccurate cutting. This block addresses that cause directly. By providing a rigid, accurate 90° reference for your jigsaw, it ensures parts fit together as designed from the start. Incorporating this block into your workflow is a specific, actionable step towards achieving tighter joints, squarer assemblies, and a more professional standard in all your woodworking projects.
