4-Port Parallel Charge Board for High-Current Simultaneous LiPo Battery Charging

This parallel charge board is designed for RC hobbyists, drone pilots, and anyone managing multiple lithium polymer (LiPo) battery packs. It functions as an expansion adapter that connects to your existing balance charger, allowing you to charge up to four separate battery packs in one go. The primary practical benefit is a significant reduction in total charging time and the elimination of the tedious process of manually swapping batteries on and off the charger. It is specifically engineered for 2S to 8S battery packs, requiring that all packs connected for a session have the same number of cells (S count) and be of the same type. The board's construction prioritises safety and high-current handling, making it a robust tool for efficient power management.

Features and Construction

The board's design centres on enabling safe, high-capacity parallel charging. Its core functionality allows the combination of multiple batteries into a single, larger-capacity pack for the charger, which then performs one balance cycle instead of several. This process not only saves time but can also help average out minor cell voltage differences.

Material and Build

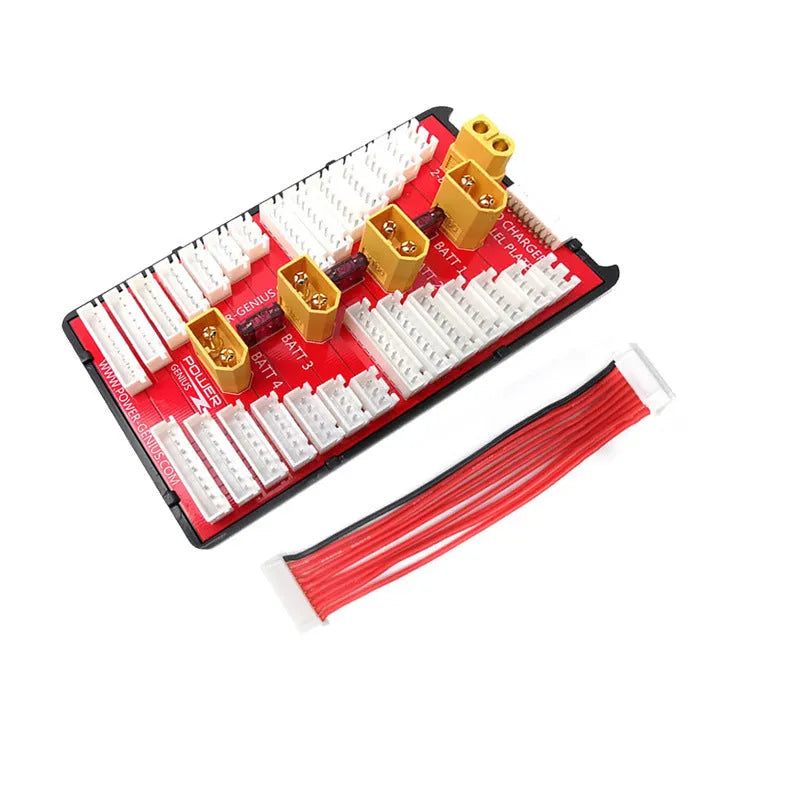

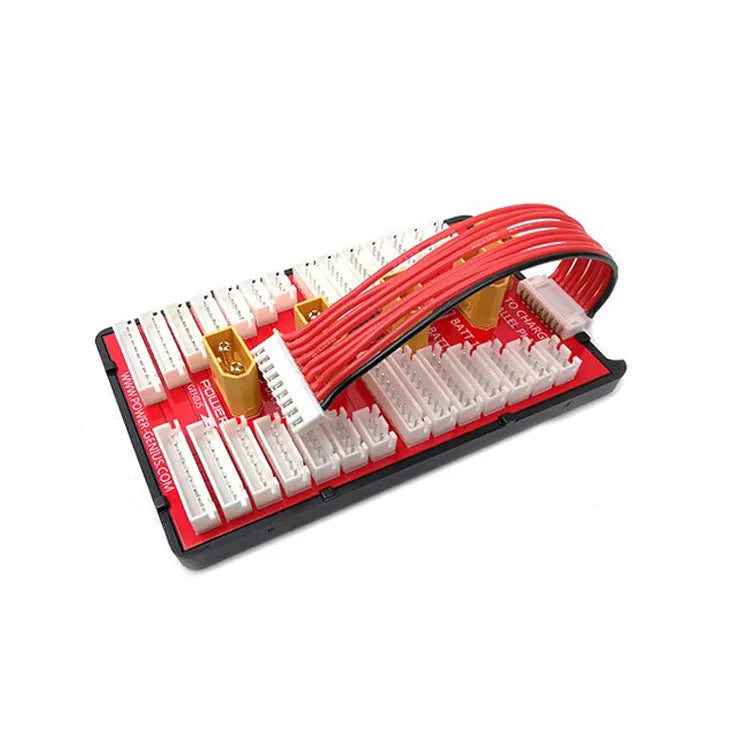

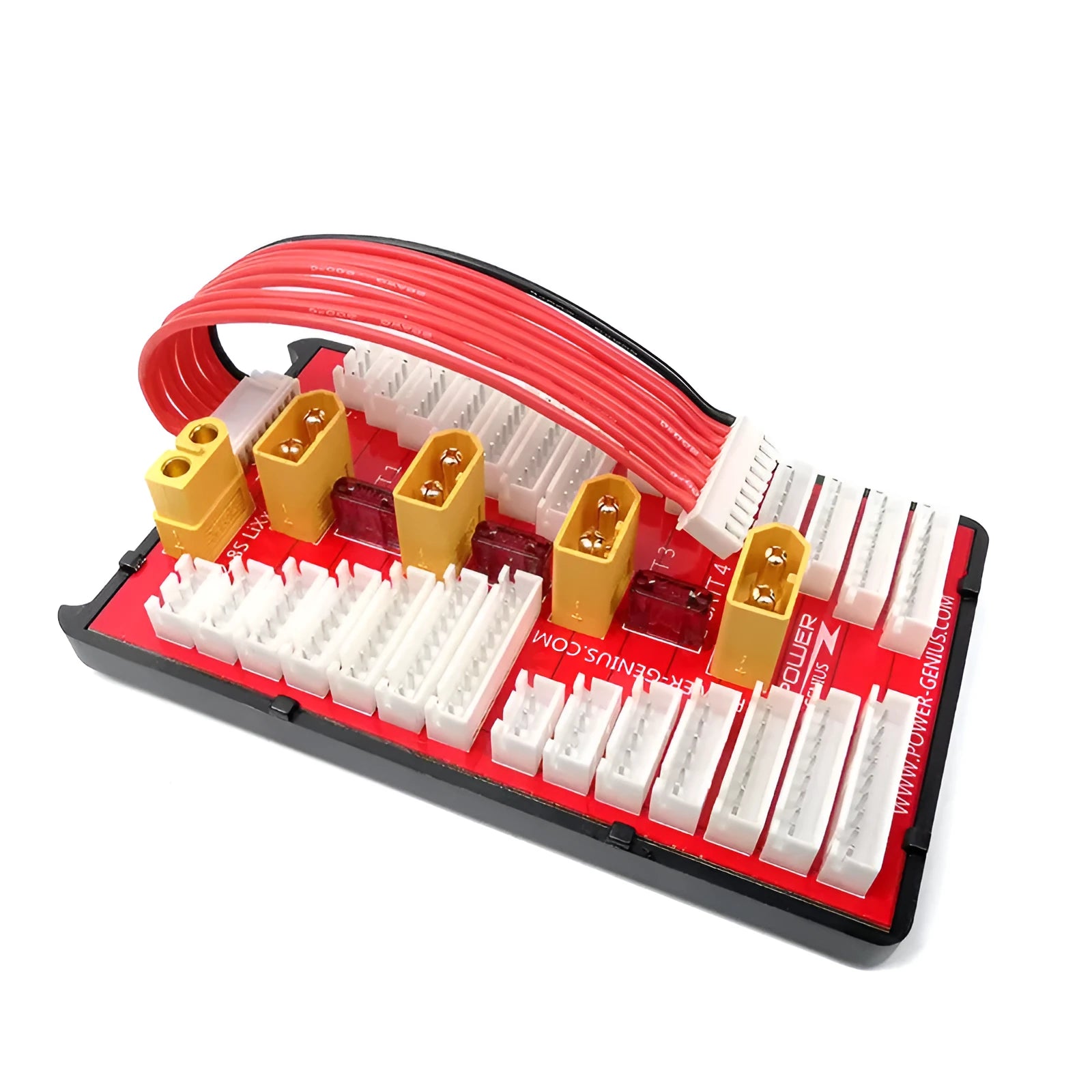

The foundation of the board is a printed circuit board (PCB) that uses a thicker copper foil layer. This specific construction choice is directly responsible for its ability to support charging currents of up to 35 amps, making it suitable for high-capacity battery packs. All electrical connectors on the board are high-quality gold-plated types, chosen for their low electrical resistance and reliable conductivity over time. The output lines for the critical balance ports are made from 18AWG multi-strand silicone wire. This wire type is notably flexible, resistant to cracking, and well-suited for the repeated handling common in RC applications.

Size and Practical Fit

While exact physical dimensions are not specified, the board is designed as a compact adapter. Its layout accommodates connections for four separate battery sets, each with a main discharge plug (like a T plug) and a corresponding balance port. The inclusion of protective silicone caps for the T plugs is a practical touch for storage and safety, preventing accidental short circuits from metal objects contacting the exposed connectors when not in use. The board itself is supplied in a blister pack, indicating it is a standalone electronic component ready to integrate into your existing charging setup.

Uses and Placement

This adapter board is not a standalone charger; it is an accessory that expands the capability of a compatible balance charger. Its use is specific to the realm of rechargeable lithium polymer batteries, common in radio-controlled models and drones.

Event or Professional Use

For pilots and drivers at events or during intensive practice sessions, where multiple battery packs are cycled through quickly, this board is invaluable. It allows for the rapid turnaround of packs between runs or flights. By charging four packs simultaneously, downtime is minimised. Furthermore, the board's design means that even batteries with lower individual charge rate (C-rate) tolerances can be charged safely in parallel, as the total current is distributed. This feature provides a practical safety margin and flexibility in battery management during demanding use.

Everyday Home Use

For the enthusiast at home, the board simplifies post-use charging routines. Instead of monitoring and changing over four individual batteries sequentially, you can connect them all after a session and let the single balance charge cycle complete. This is not only more convenient but also reduces wear on charger ports from frequent plugging and unplugging. The safety fuse system offers peace of mind during unattended charging periods, as it is designed to protect the circuit if a connected battery has an abnormally high voltage difference.

Benefits and Buying Value

The value of this product lies in its time-saving efficiency and its robust construction for repeated, reliable use. It transforms a standard charging process into a more streamlined operation.

Reuse and Low Maintenance

The board is built as a durable accessory. The gold-plated connectors resist corrosion, the silicone wire resists fatigue, and the PCB is designed for sustained high-current use. This translates to a product intended for long-term reuse as part of your charging toolkit. Maintenance is minimal, primarily involving the careful use of the provided silicone caps to keep connectors clean and safe when not in use, and ensuring batteries meet the voltage matching guideline before connection.

Why Choose This Product

Choose this parallel charge board if you regularly charge multiple LiPo packs and seek to drastically cut down on waiting time. Its differentiators are clear: the support for up to 35A current, the inclusion of critical 40A fuses for protection, and the use of quality materials like gold-plated connectors and silicone wire. It provides a specific, factual advantage over charging batteries individually, backed by its electrical design which safely combines pack capacities (e.g., turning two 4S 5000mAh packs into one virtual 4S 10000mAh pack for the charger). It is a practical tool that addresses a clear need in the RC hobbyist workflow.
