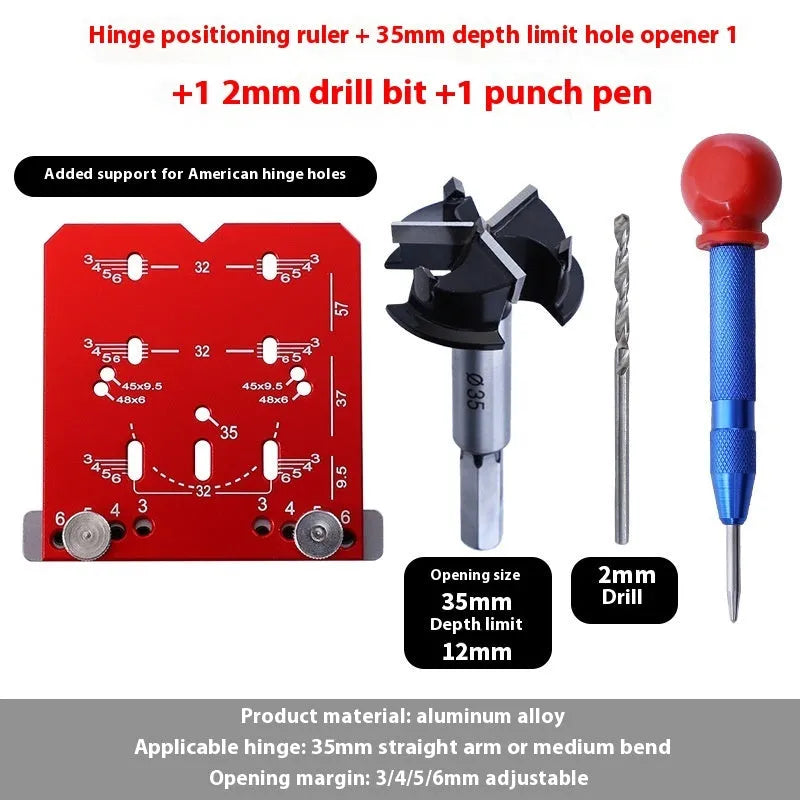

35mm Hinge Punch Locator Tool with Adjustable Margin Settings for Cabinet and Wardrobe Installation

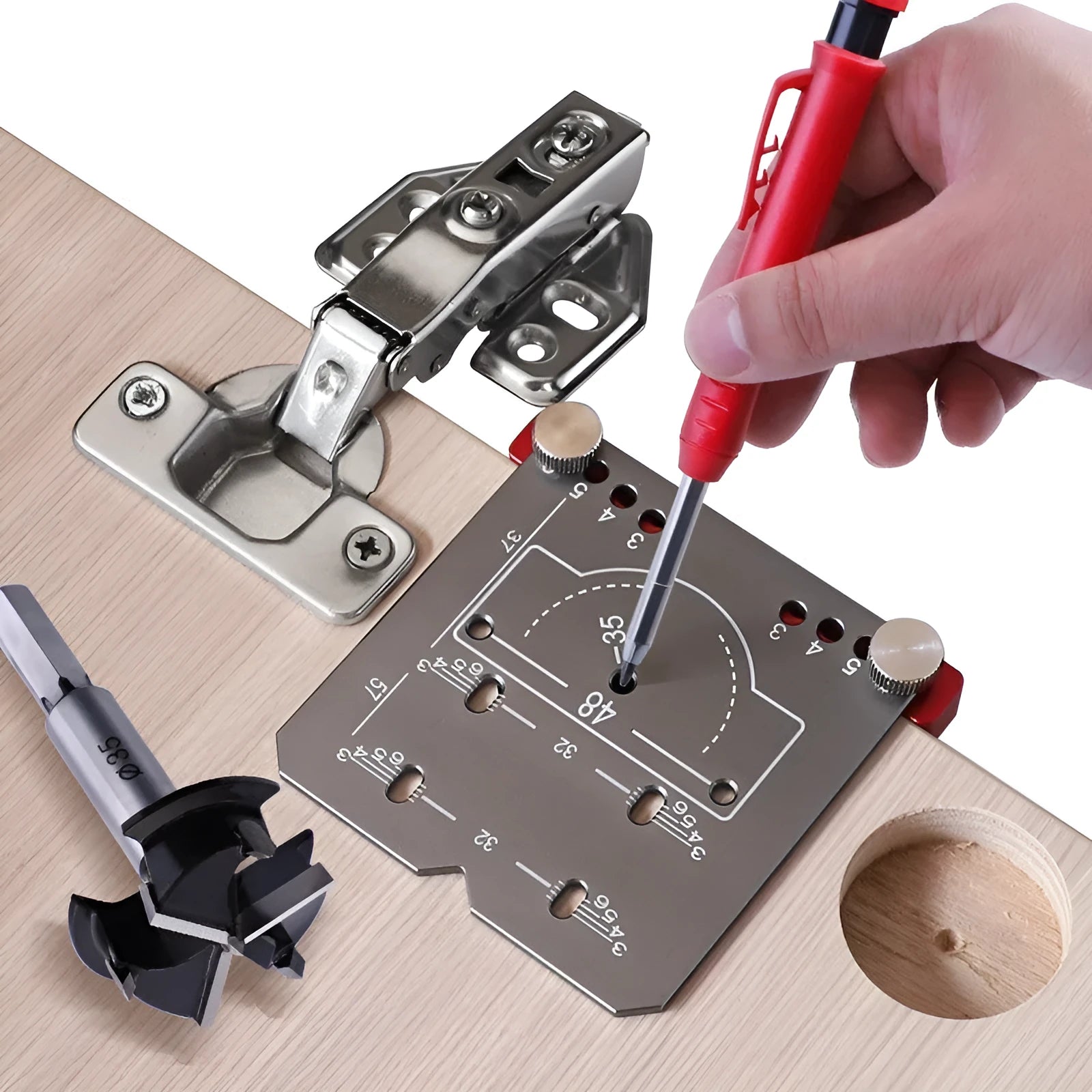

This hinge punch locator provides woodworkers, DIY enthusiasts, and home improvers with a specialised tool for accurately installing 35mm hinges on cabinet doors, wardrobe panels, and furniture components. The aluminium alloy construction combines lightweight handling with structural stability, while the adjustable margin system allows customisation based on specific installation requirements. Designed to eliminate measurement guesswork, this tool helps achieve consistent hinge placement across multiple doors or panels, particularly useful when installing matching cabinetry sets or replacing existing hardware.

Features and Construction

The hinge locator incorporates several practical features that address common installation challenges faced during cabinet and furniture assembly. Its design focuses on providing reliable guidance for hinge hole placement while accommodating variations in installation preferences and hardware specifications.

Material and Build

Constructed from aluminium alloy, the locator rule offers a balance between durability and manageable weight for extended use during installation projects. The material provides sufficient rigidity to maintain accuracy while being lightweight enough for comfortable handling. The included tapper features a hard alloy blade that has undergone high-temperature heat treatment, resulting in enhanced hardness properties. This treatment aims to maintain cutting edge sharpness through multiple uses while resisting wear during typical woodworking applications.

Size and Practical Fit

The tool is specifically designed for compatibility with 35mm extended arm and middle bend hinges, covering common hinge types used in cabinet and wardrobe construction. The adjustable margin system offers four precise settings – 3mm, 4mm, 5mm, and 6mm – allowing users to select the appropriate distance based on their specific installation requirements or personal preference. This adjustability makes the tool suitable for various projects where hinge placement specifications might vary between different cabinet styles or installation methods.

Uses and Placement

The hinge punch locator finds application in both professional woodworking settings and home DIY projects where consistent, accurate hinge installation contributes to proper door function and alignment. Its design addresses the precision requirements of hinge mounting while simplifying what can otherwise be a time-consuming measurement process.

Event or Professional Use

For professional cabinet makers, furniture assemblers, or kitchen installers, this tool offers time-saving advantages when installing multiple hinges across cabinet sets or wardrobe systems. The consistent margin settings help maintain uniform appearance and function across all doors, particularly important in projects where visual symmetry and operational smoothness are priorities. The hard alloy blade tapper provides sufficient durability for professional workshop environments where tools see regular use across multiple projects.

Everyday Home Use

Home DIY enthusiasts undertaking cabinet installation, wardrobe assembly, or furniture refurbishment projects will find this tool simplifies what can be a challenging aspect of woodworking. The clear margin settings remove measurement uncertainty, helping achieve professional-looking results without specialised woodworking experience. The tool's household suitability makes it accessible for occasional users who may not possess extensive workshop tools but require accuracy for home improvement tasks involving hinge installation.

Benefits and Buying Value

Beyond its immediate function as a hinge installation guide, this tool offers practical advantages through its reusable nature and contribution to installation consistency. These benefits translate to value for both occasional users and regular woodworkers seeking reliable results from their projects.

Reuse and Low Maintenance

The aluminium alloy construction and heat-treated blade contribute to the tool's potential for reuse across multiple projects over time. Unlike disposable marking methods or temporary solutions, this dedicated tool can be stored and retrieved for future hinge installation needs, whether for additional cabinets, furniture repairs, or new woodworking projects. The materials selected aim to withstand typical storage conditions and occasional use without significant degradation of function.

Why Choose This Product

This hinge punch locator addresses a specific need in cabinet and furniture installation – achieving consistent, accurate hinge placement without complex measurement tools or extensive marking calculations. The adjustable margin system provides flexibility for different installation preferences, while the 35mm hinge compatibility covers common hardware sizes used in many household and workshop projects. For users seeking to improve the accuracy and efficiency of their hinge installation work, this tool offers a focused solution that complements existing woodworking tool collections.
