ECG Holter 12 Channel 12 Lead 24 Hour Recorder with PC Software

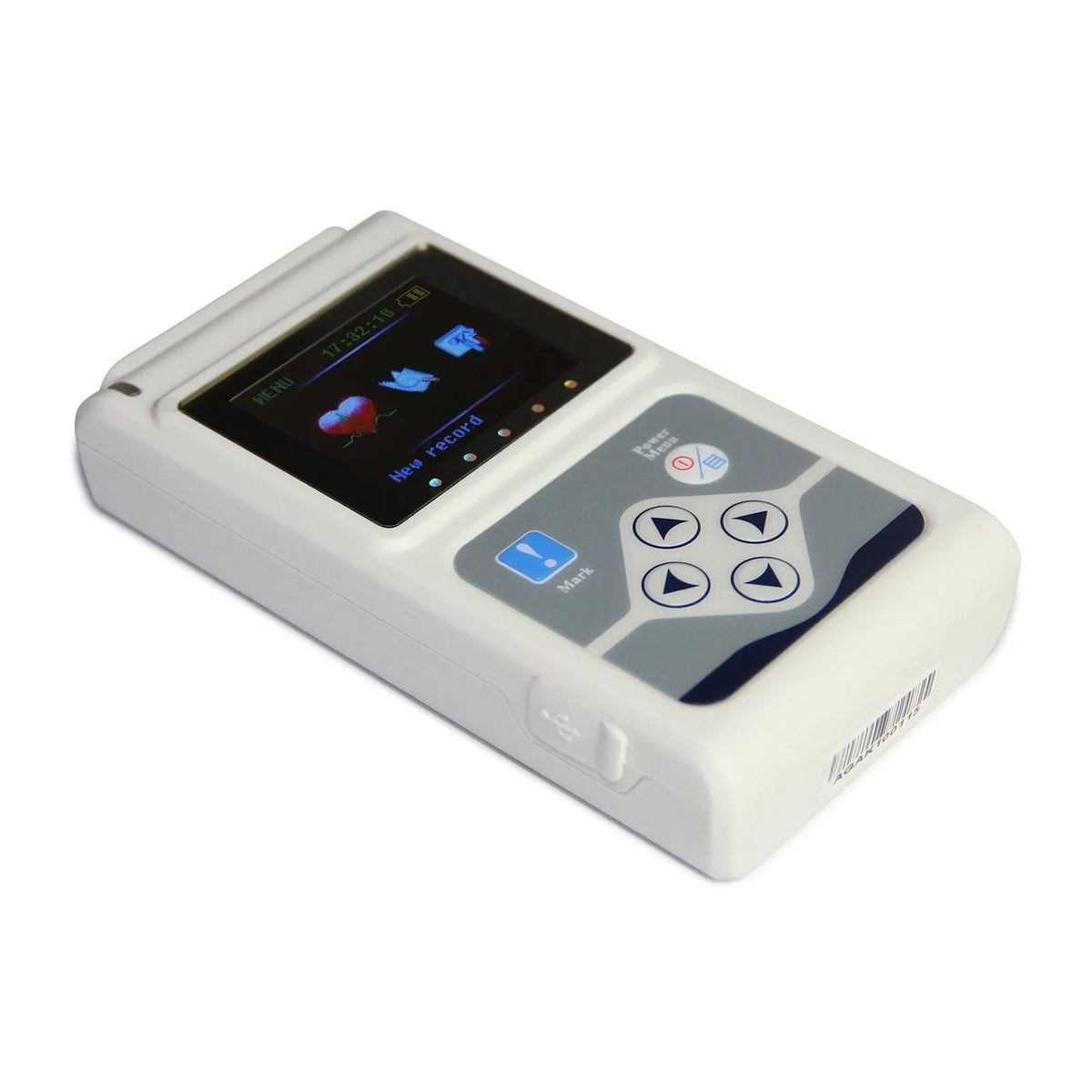

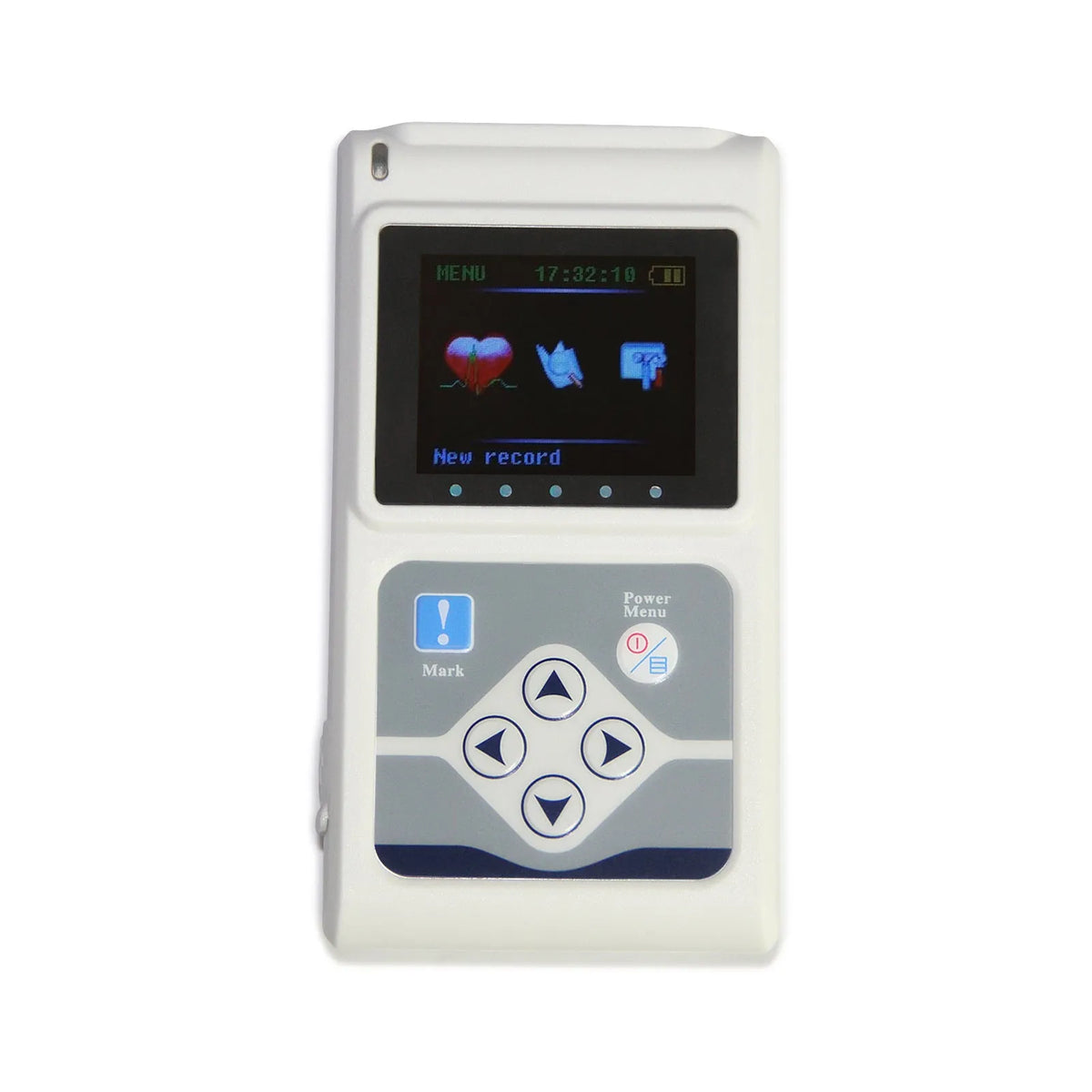

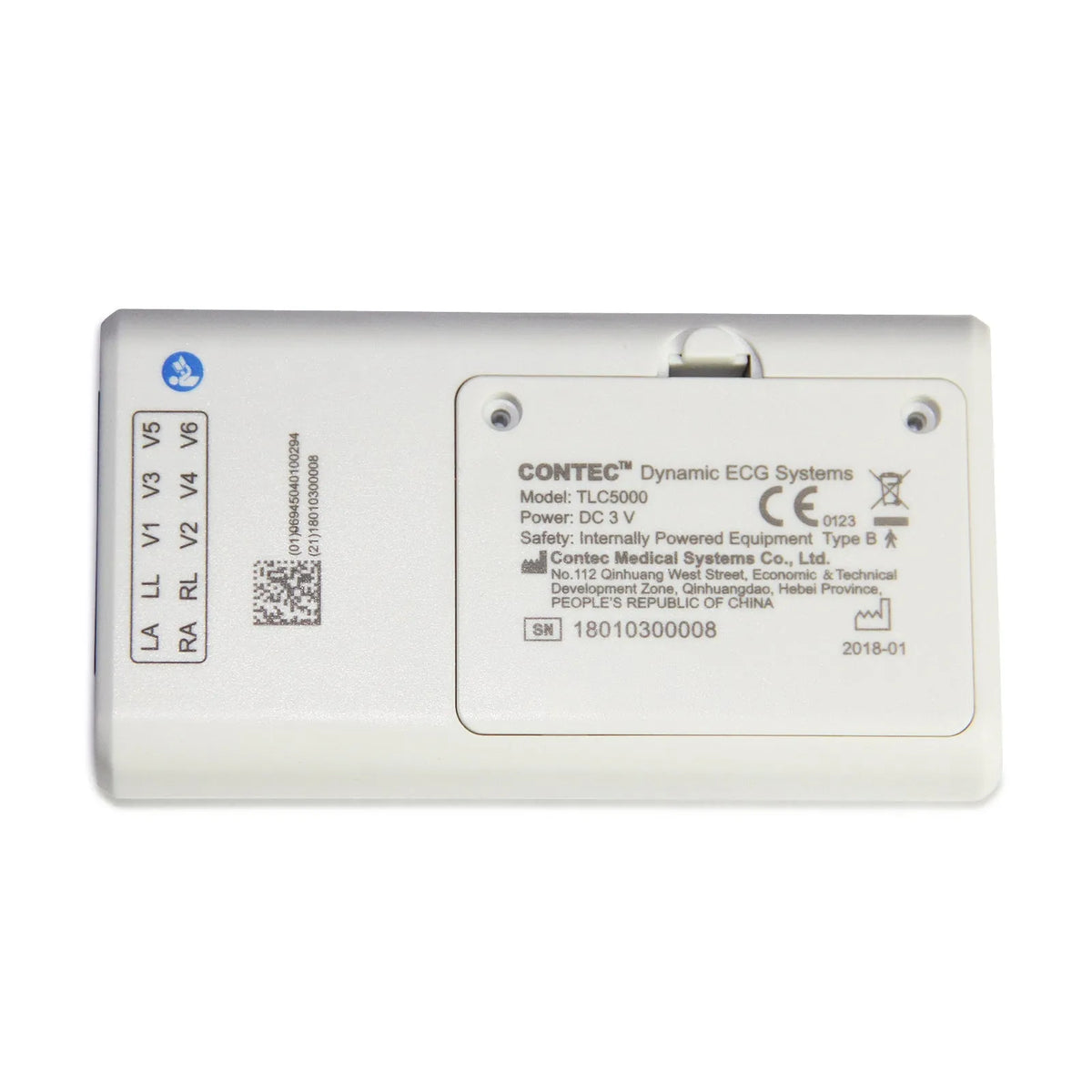

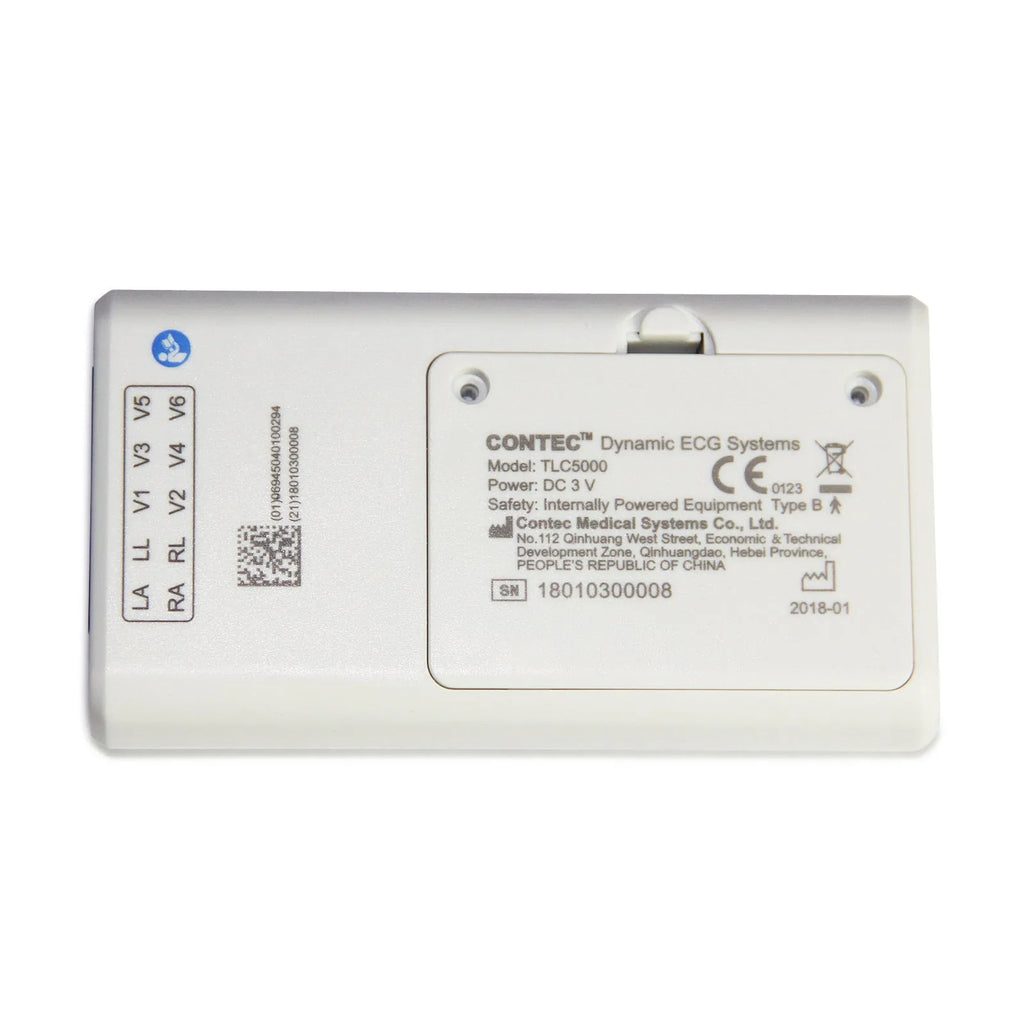

This 12-channel, 12-lead ECG Holter system is designed for continuous 24-hour ECG waveform recording and PC-based analysis in medical institutions and community settings. It uses the international standard 12-lead configuration, stores ECG data in real time, and provides a broad set of analysis tools through the supplied software. The system is intended to support clinicians in reviewing extended cardiac activity, including arrhythmia patterns, pacemaker behaviour, ST segment changes and other indicators that may not appear during a short recording. The recorder is powered by two AA batteries and connects via USB2.0. It carries CE and FDA certification and is supplied as model TLC5000.
Recording and Data Handling
The recorder captures ECG data continuously over a 24-hour period, which allows the full session to be reviewed after the recording is complete. Data is stored in real time and can be transferred to a PC for analysis. The system uses a standard 12-lead configuration and supports sync analysis for all 12 leads, helping to maintain accurate QRS waveform detection without distortion.
24-Hour Real-Time Storage
The recorder is specified to store ECG data in real time for 24 hours. This supports extended monitoring sessions where a single short ECG snapshot would not provide enough information. The 24-hour record can then be analysed using the PC software, with single or full-lead ECG review available in any time bucket through the fast review analysis function. The system also supports one-key printing for reports, and case management is provided within the software.
12-Lead Sync Analysis
Sync analysis for 12 leads is included so that QRS waveforms can be found accurately and without distortion across the recording. Flexible analysis channel selection allows any channel to be chosen as the main analysis channel. For atrial fibrillation, the software supports whole or segmented AUTO/manual analysis, which gives physicians options when reviewing this specific rhythm. These functions are intended to reduce manual review effort while keeping the analysis configurable.
Analysis Functions
The software includes multiple analysis modules intended to support comprehensive ECG review. Arrhythmia analysis is based on MCSSTM and TMCATM, and the system provides more than 10 templates plus user-defined modules. Pacemaker analysis covers AAI, VVI and DDD types, and additional modules address heart rate variability, ST segment changes, sleep breath pause prediction, HRT, T-wave alternation, QTD, VCG, VLP and TVCG.
Arrhythmia and Template Analysis
Arrhythmia analysis using MCSSTM and TMCATM is included to help reduce doctor workload. The system provides more than 10 templates, such as atrial premature beat, ventricular premature beat, long interval and atrial fibrillation, along with many user-defined modules. According to the source text, these can almost distinguish any kind of pathologic waveform. Flexible analysis channel selection ensures that any channel can be selected as the main analysis channel. Sync analysis for 12 leads supports accurate QRS detection without distortion.
Pacemaker and Atrial Fibrillation
All pacemakers, including AAI, VVI and DDD, can be analysed using the pacemaker analysis function. Multiple pacing analysis templates are provided, including dual chamber pacing, atrial pacing, ventricular pacing, ventricular pseudofusion and ventricular asynchronous pacing. For atrial fibrillation, the system offers flexible analysis so that physicians can use whole or segmented AUTO/manual analysis. This is intended to support more accurate atrial fibrillation review. The recorder also operates with the function in the presence of pacemaker pulses.
Additional Diagnostic Modules
Heart rate variability analysis is available for 5-minute, 1-hour and 24-hour periods. Advanced ST segment analysis and total load of myocardial ischemia can help doctors comprehensively judge myocardial ischemia by analysing abnormal ST according to the whole or by event. The unique sleep breath pause syndrome analysis function can predict the risk of sleep breath pause. The HRT analysis function can predict death risk in patients with myocardial infarction. T-wave alternation is included as an index for predicting malignant arrhythmia and sudden cardiac death. QTD, VCG, VLP and TVCG analysis modules are also provided for more valuable analysis reports.
Technical Performance and Accessories

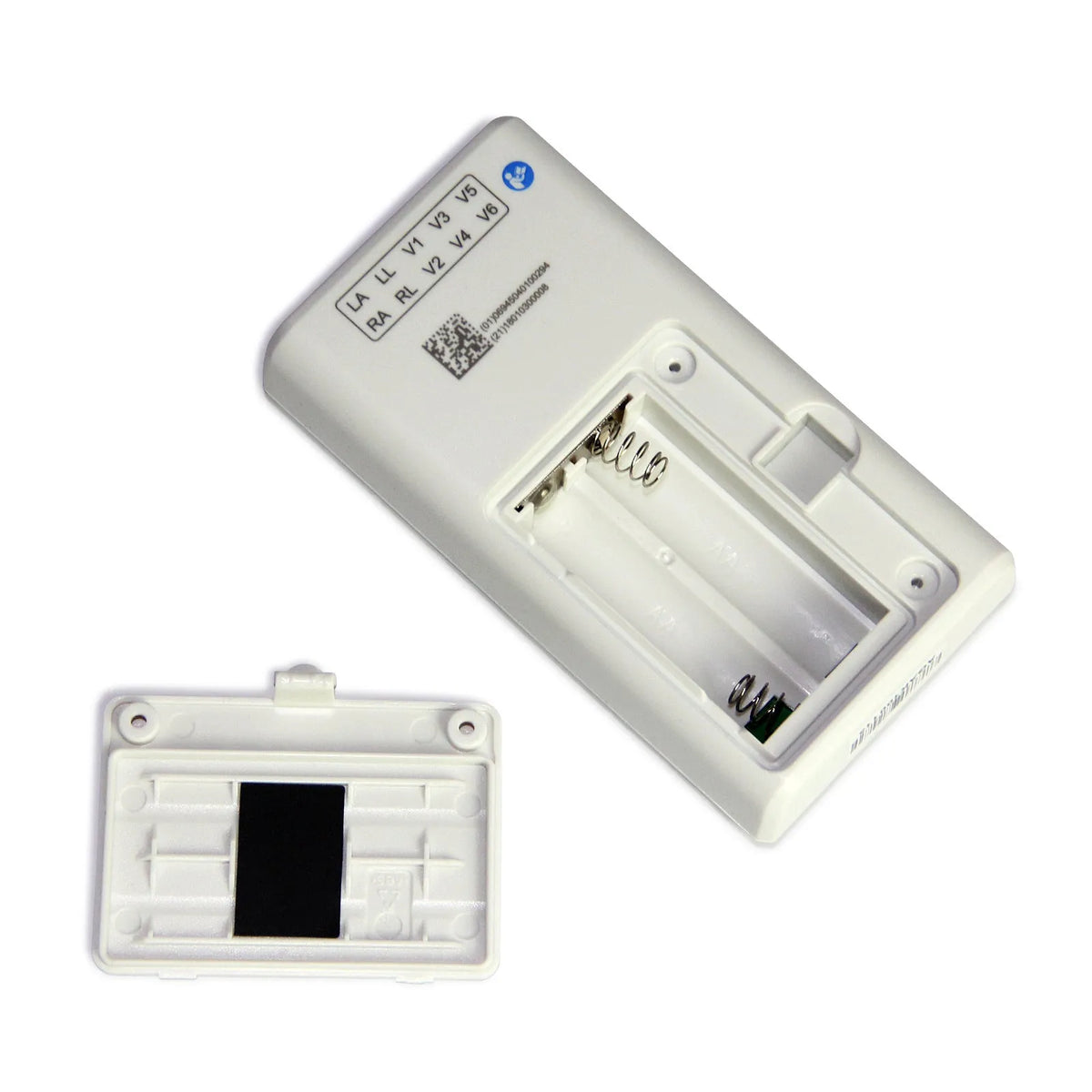

The system has a standard 12-lead configuration and a 24-hour record time. It is powered by two AA batteries and connects via USB2.0. Sampling accuracy is 24bit, sampling frequency is 250Hz, dynamic range is 10mV, input impedance is ≥10MΩ, CMR is ≥60dB, system noise is ≤50µVp-p, and multichannel crosstalk is ≤0.2mV. Gain accuracy, gain stability, frequency response, minimum measure signal and timing accuracy are specified to support reliable recording and analysis.
Technical Specifications
Lead: standard 12-lead. Record time: 24-hour. Power supply: two AA batteries. Interface: USB2.0. Sampling accuracy: 24bit. Sampling frequency: 250Hz. Dynamic range: 10mV. Input impedance: ≥10MΩ. CMR: ≥60dB. Gain accuracy: at all possible gain settings, the maximum amplitude error of the output is ±10%. Gain stability: one minute after energising the device, the gain change in stable ambient conditions shall not exceed 3% over a 24h period. System noise: ≤50µVp-p. Multichannel crosstalk: ≤0.2mV. Frequency response: the amplitude response to sinusoidal signals within 0.05Hz to 40Hz shall be between +3dB and -3dB of the response at 5Hz. Minimum measure signal: 50µV. Timing accuracy: the overall error during 24h shall not exceed 30s. Certification: CE, FDA.
Physical Details and Included Items

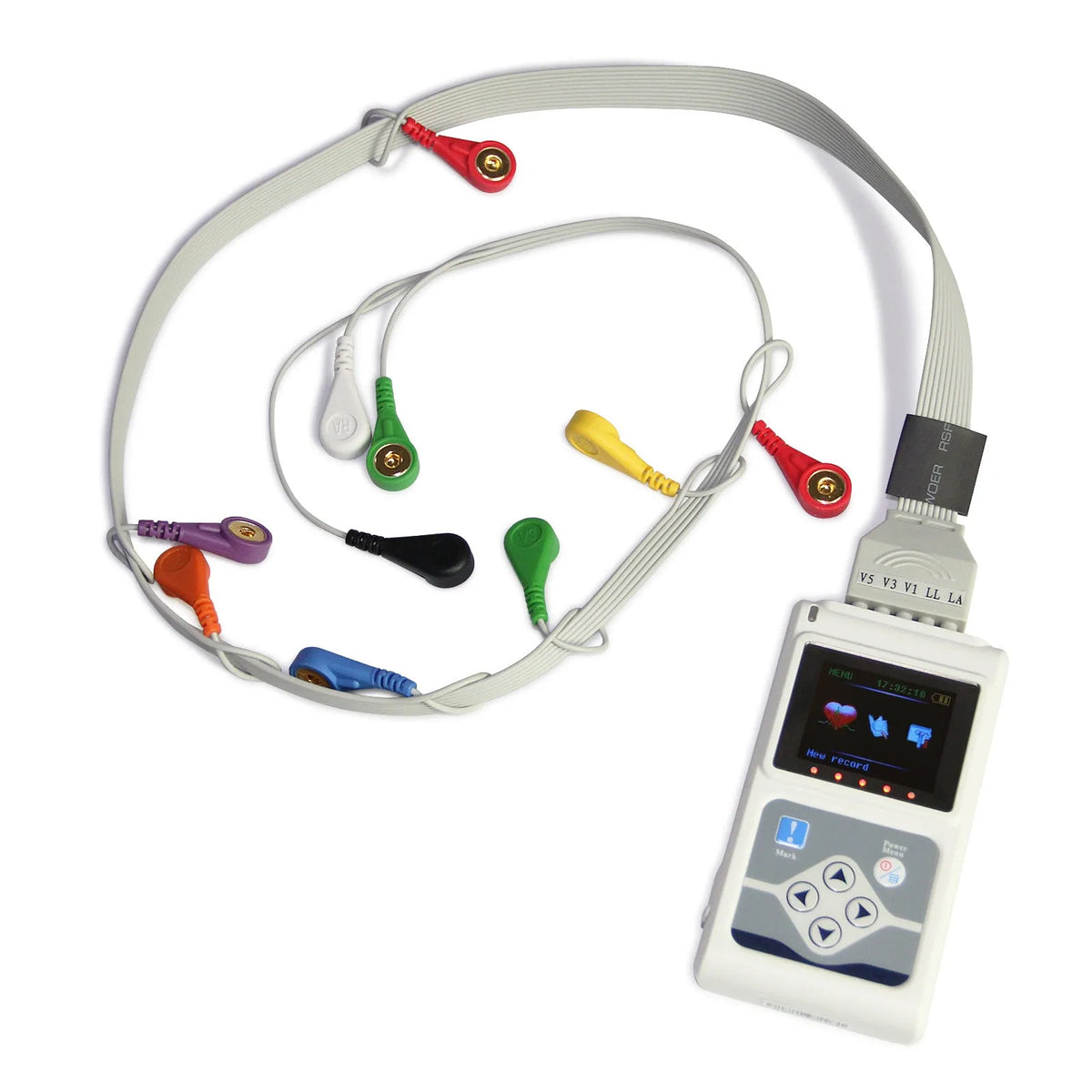

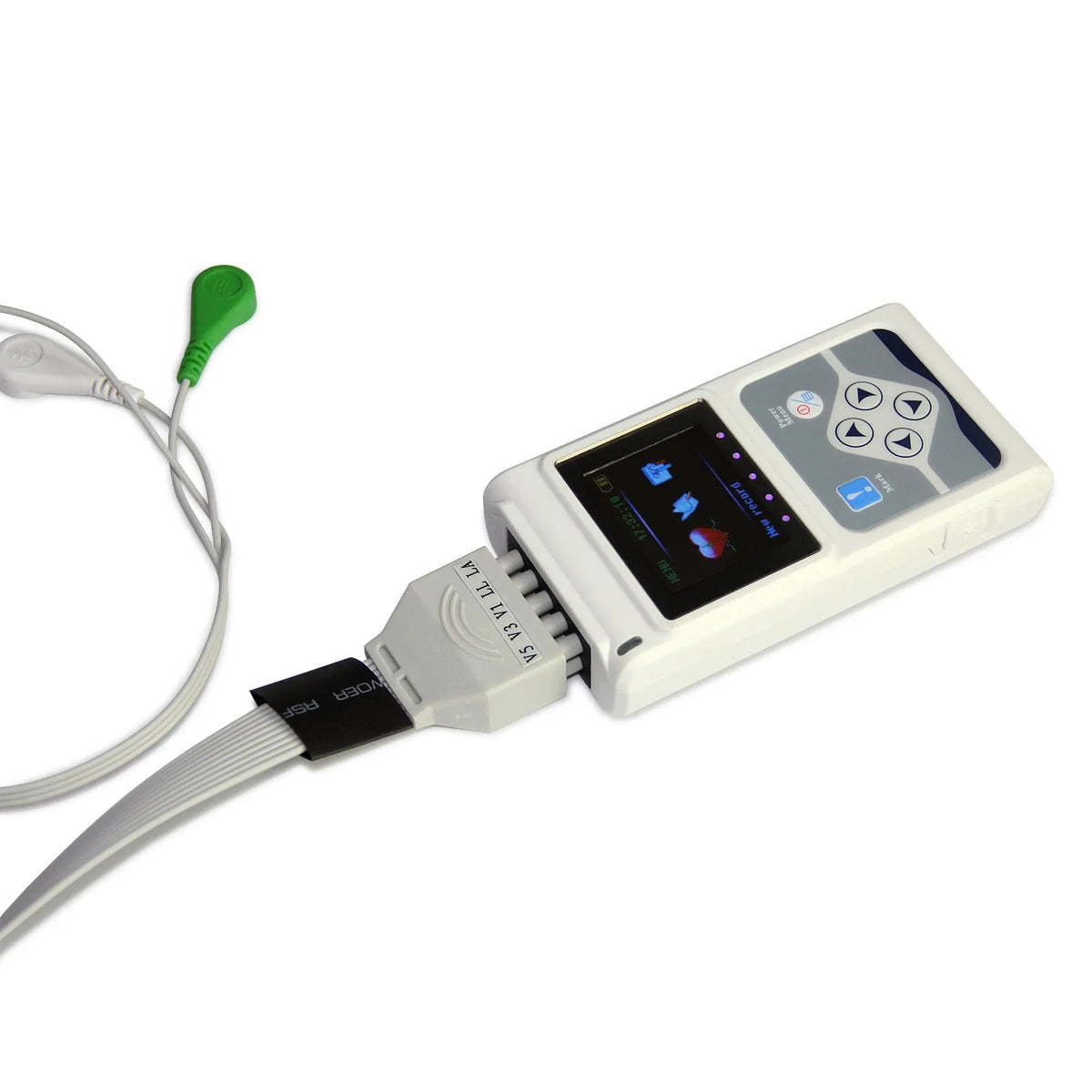

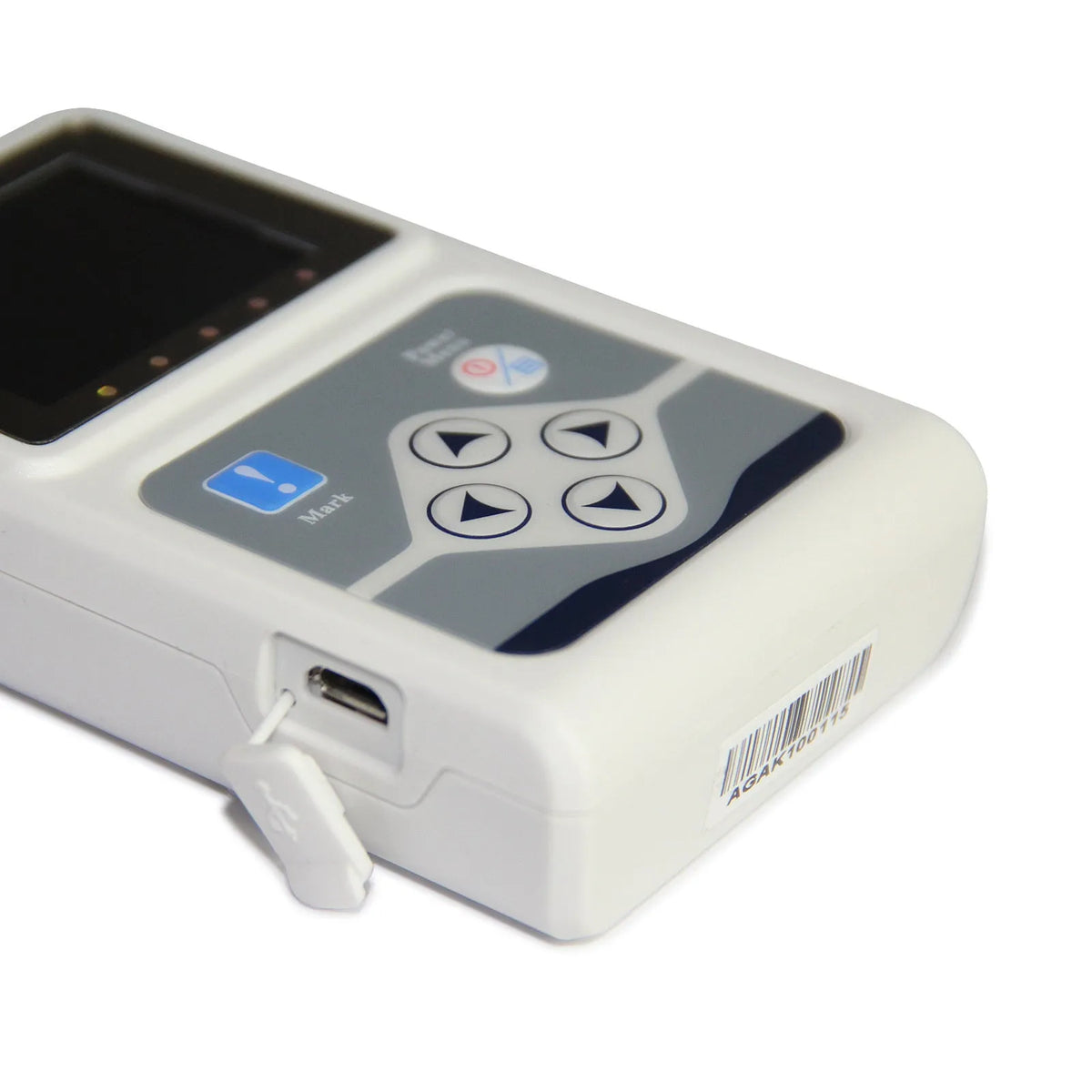

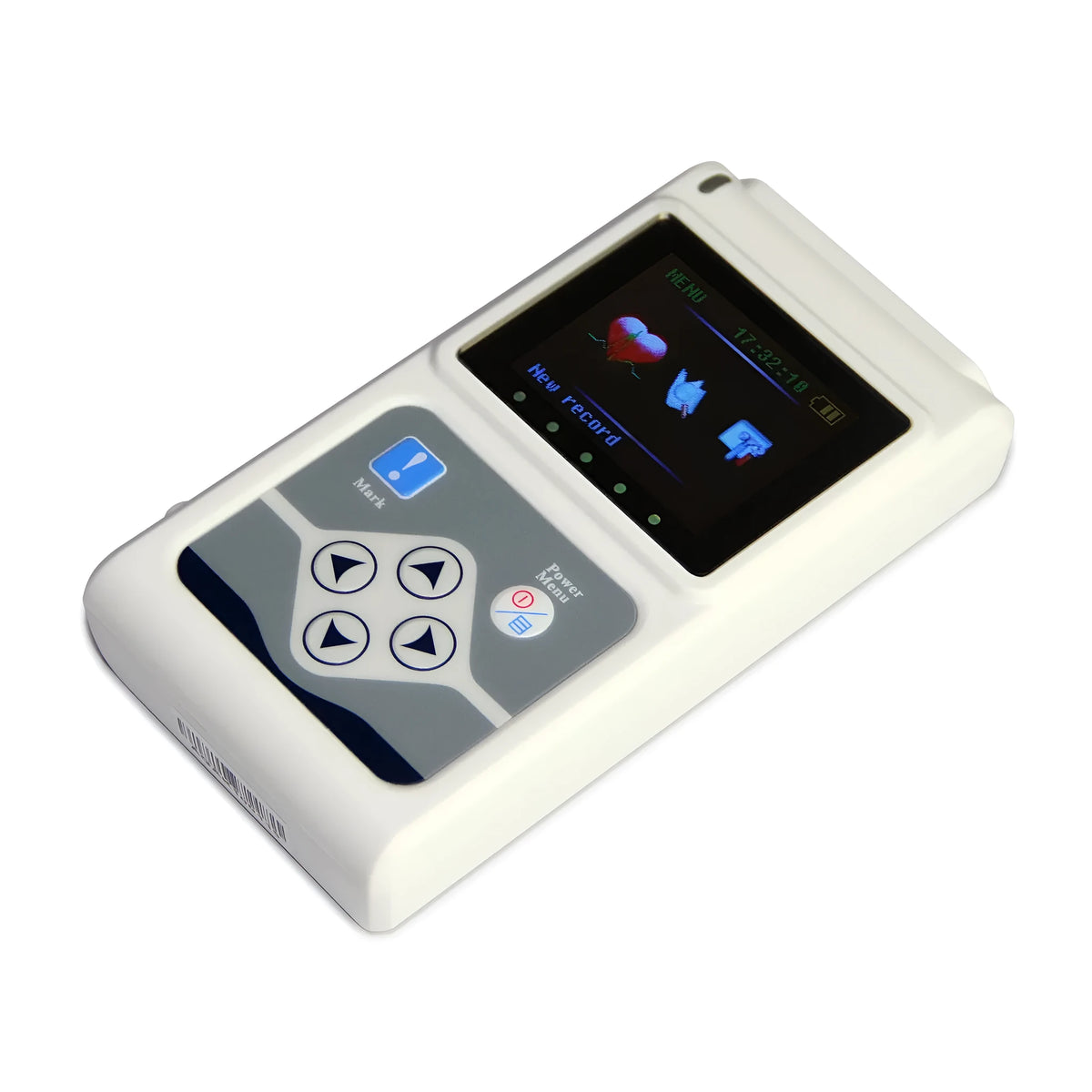

The recorder measures 111mm (L) × 61mm (W) × 25mm (H) and weighs about 105g without batteries. The package includes a lead cable (1 set), ECG electrode (1 bag), USB cable (1), bag (1) and user manual (1). Optional configuration is available and refers to the BOM. The source text does not state further details about the optional configuration or additional accessories.
