Caddx Vista DJI FPV Adaptor Kit: Aluminium Mounting Frame with Integrated Wiring Harness

This adaptor kit serves as a dedicated interface hardware solution, designed specifically to bridge Caddx Vista digital image transmission systems with DJI's FPV remote control ecosystem. It is intended for FPV drone builders and enthusiasts who require a reliable, physical mounting point and pre-configured electrical connections to integrate these two popular hardware families. The core component is a machined aluminium alloy frame, supplied in a silver finish, which provides a secure base for the Vista unit. The kit's complete set of hardware—including multiple M2 screw lengths and spacers—alongside its pre-made 3-in-1 and menu wires, is aimed at streamlining the installation process for builds falling within a take-off weight range of 250g to 1.5kg and utilising handle-based remote control.

Features and Construction

The adaptor kit is centred around practical integration, providing the necessary physical and electrical components to connect a Caddx Vista system to DJI FPV controls. Its design prioritises a secure mount and simplified wiring to reduce build complexity for the user.

Material and Build

The primary structural element is an adaptor frame constructed from aluminium alloy. This material choice provides a rigid and lightweight mounting platform for the Caddx Vista transmission unit. The frame is finished in silver. The electrical connectivity is handled by two included wiring looms: a 3-in-1 wire harness and a separate menu wire, which are pre-assembled to correspond with the standard connection points on the relevant hardware, aiming to minimise custom soldering or cable fabrication during installation.

Size and Practical Fit

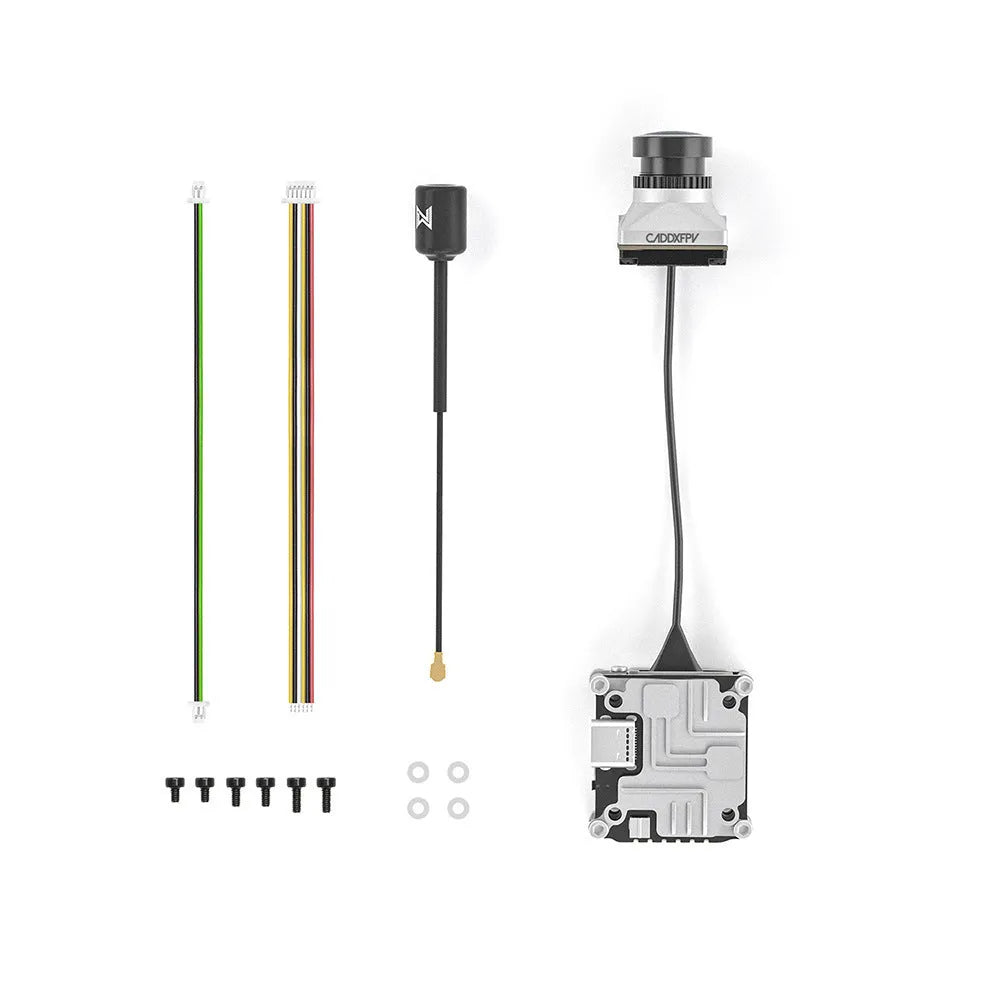

The kit's fit is defined by the included fastening hardware. It supplies six M2 screws in three distinct lengths: 3 mm, 4 mm, and 5 mm. This range allows for adjustment based on the thickness of the components being secured. Four screw spacers are also included to ensure proper stand-off distance and alignment between the adaptor frame, the Vista unit, and the drone's main frame, which is crucial for avoiding short circuits and ensuring a vibration-free mount. The adapter is designed for systems rated for users aged 14 years and over.

Uses and Placement

This product has a clear, specialised application within the FPV drone building and modification space, facilitating a specific type of hardware compatibility.

Event or Professional Use

For FPV racing events, freestyle flying, or aerial filming where reliable, low-latency digital video transmission is critical, this adaptor enables pilots to utilise the Caddx Vista system with the familiar DJI FPV controller interface. The handle-based remote control mode is standard for such applications. Builders must ensure their final craft, including this adaptor, complies with the specified maximum flight height of 120 metres and the 1.5 kg maximum take-off weight, which are important parameters for both safe operation and adherence to many flying site regulations.

Everyday Home Use

For the hobbyist building or upgrading a personal FPV drone at home, this kit simplifies a technically demanding part of the process. By providing the specific mount and correct wiring, it reduces the research and fabrication time needed to make the Caddx and DJI components work together. The included variety of screw lengths and spacers offers flexibility for different frame designs, making it a versatile solution for one-off custom builds.

Benefits and Buying Value

The value of this adaptor kit lies in its role as a dedicated compatibility solution, bundling the necessary parts for a specific technical task.

Reuse and Low Maintenance

The aluminium alloy frame is a durable mounting point that can typically be transferred between builds if the Vista unit is moved. The wiring harnesses, being pre-configured, are designed for a single, correct installation, reducing the risk of connection errors that could damage components. The mechanical hardware (screws and spacers) is standard and can be replaced if lost or damaged during maintenance.

Why Choose This Product

Choosing this adaptor kit is a decision based on needing a confirmed, ready-to-fit solution for integrating Caddx Vista and DJI FPV systems. It removes the guesswork from determining the correct mounting pattern and wire pinouts. For builders who value a streamlined assembly process with reduced risk of incorrect connections, the inclusion of the precise screws, spacers, and pre-made wires represents a practical convenience and a safeguard for their more valuable core electronics like the Vista unit and flight controller.
