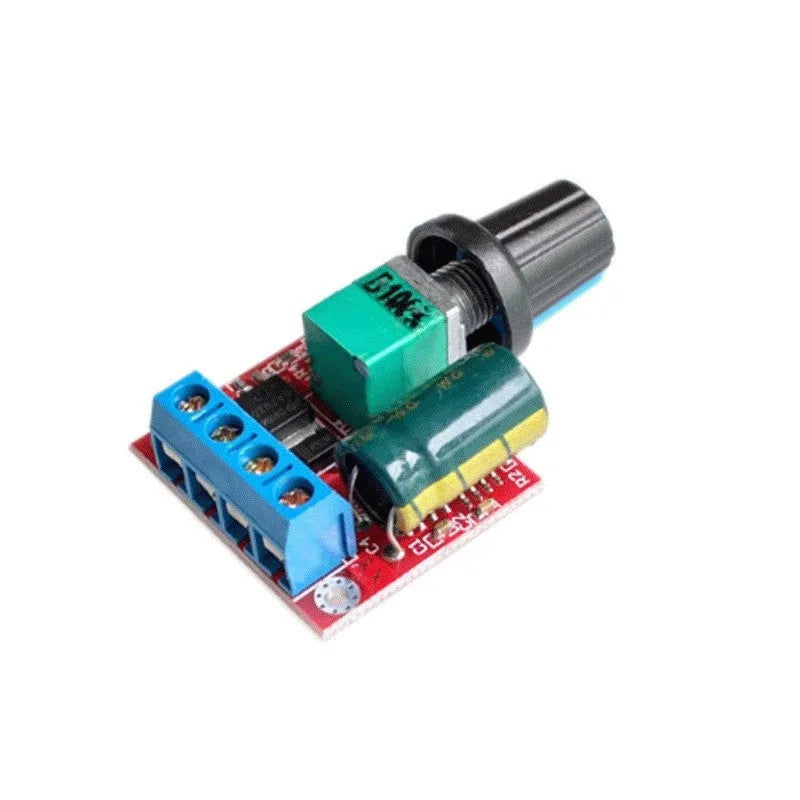

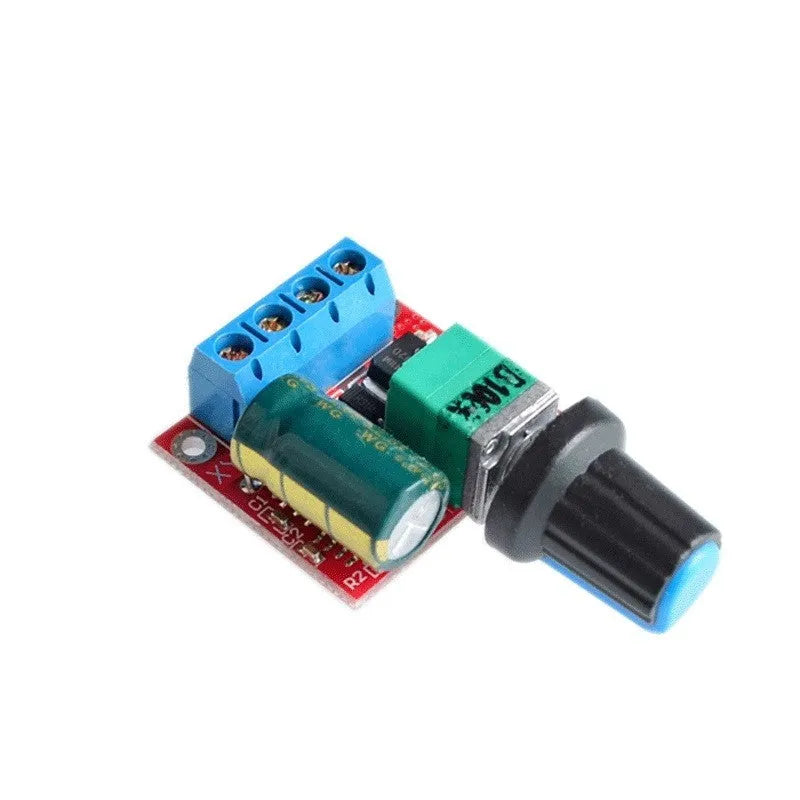

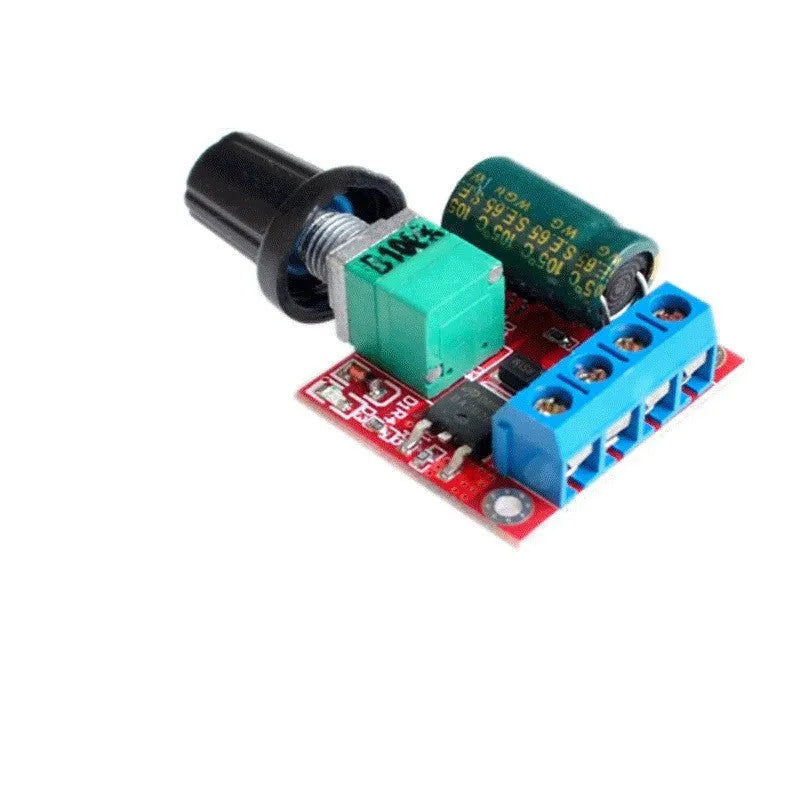

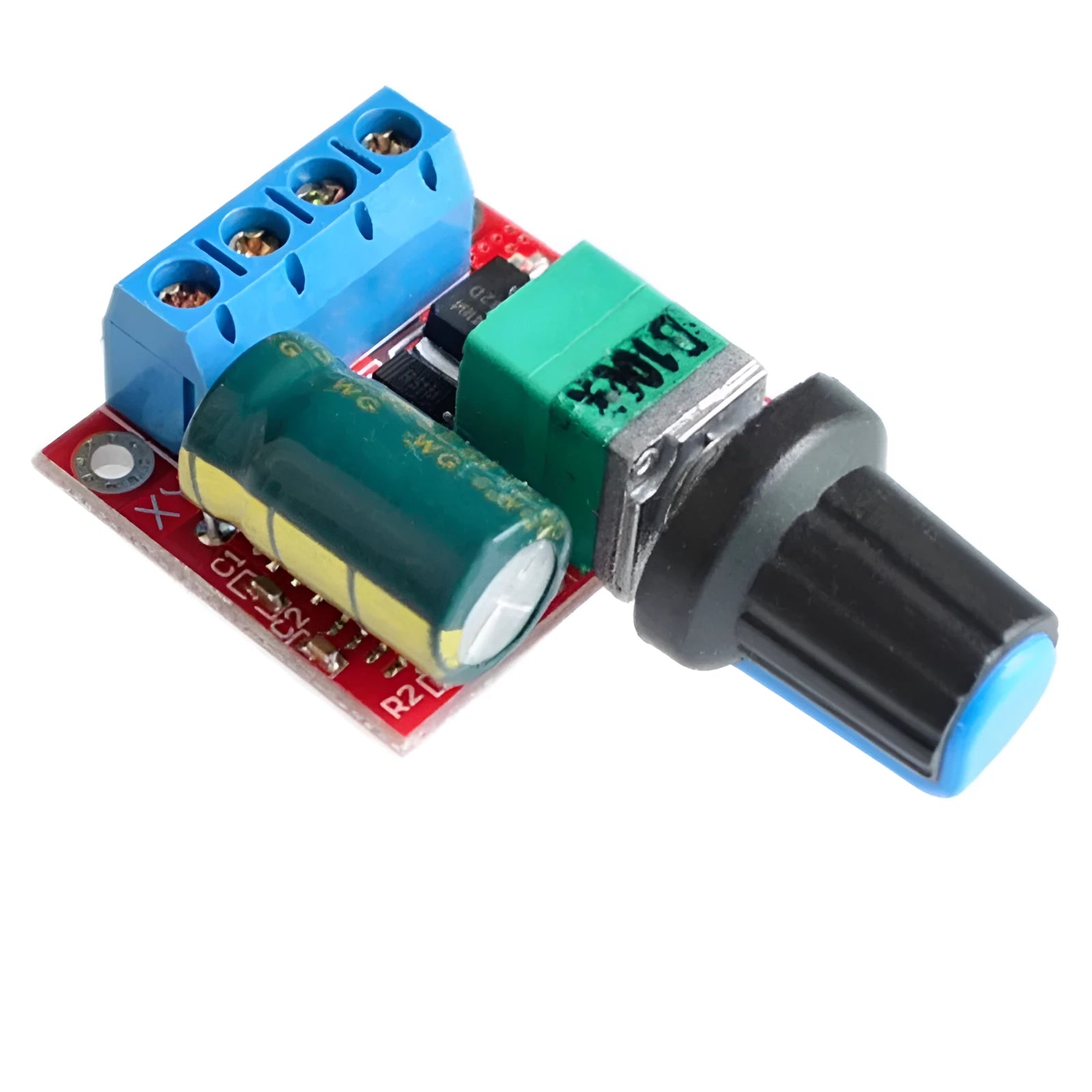

PWM DC Motor Governor for 5V to 35V Speed Regulation with 5A Output and Adjustable Control

This PWM DC motor governor provides a practical solution for users needing to control the speed of small DC motors, fans, and similar devices. It operates within a wide DC voltage range of 4.5V to 35V, making it compatible with a variety of low-voltage power supplies and battery packs. With an output current capability of 0-5A and a maximum output power of 90W, it is suited for numerous hobbyist, prototyping, and light industrial applications where adjustable motor speed is required. The unit's core function is to generate a Pulse Width Modulation (PWM) signal, allowing for efficient and precise speed control without the energy loss typical of resistive methods. Its compact design and simple potentiometer-based adjustment make it a straightforward component for integration into various projects.

Features and Construction

The governor is built around PWM technology, offering key electrical specifications for reliable motor control. Its design focuses on delivering adjustable performance within defined parameters.

Material and Build

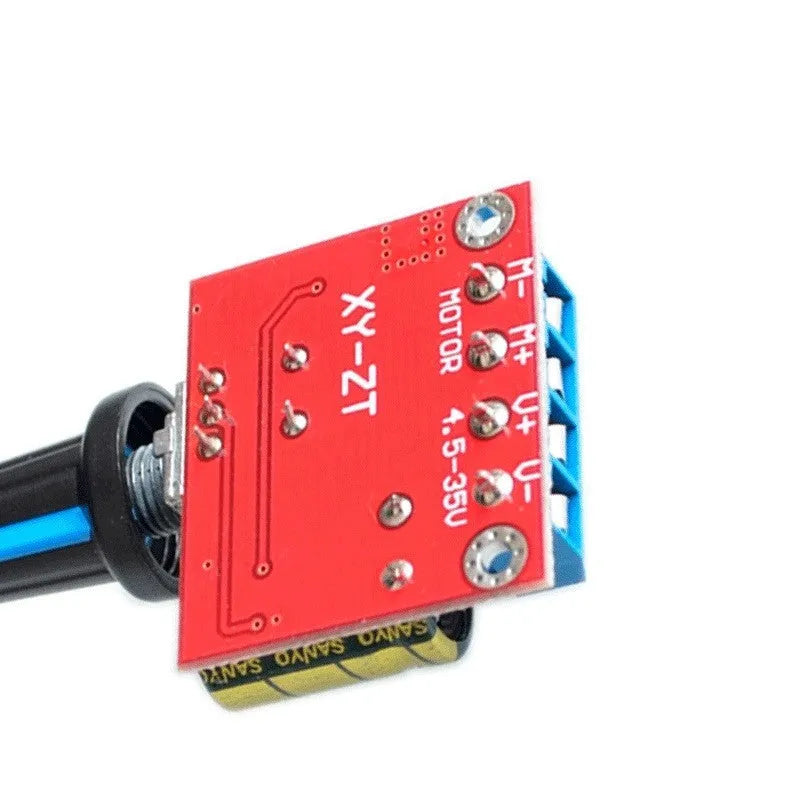

While specific materials are not listed, the governor's construction centres on its electronic circuitry designed for DC motor control. The product includes a potentiometer knob as the primary user interface for speed adjustment. It is engineered to handle a static current of just 7µA in a standby state, contributing to low power consumption when not actively driving a motor. The build must accommodate the stated 90W output power dissipation. The inclusion of clear terminal markings is inferred from the warnings about reverse polarity, which are crucial for correct installation and preventing damage.

Size and Practical Fit

The governor's physical dimensions are a key practical feature, measuring 30mm in length, 26mm in width, and 14mm in height, excluding any protruding handle on the potentiometer. This compact size facilitates installation in tight spaces, such as inside model vehicles, small machinery enclosures, or on crowded project breadboards. The small footprint allows it to be mounted directly near the motor it controls, reducing wiring length and potential electrical noise. The exact size supports its role as a component meant for integration rather than a standalone bench-top unit, appealing to users where space is a constraint.

Uses and Placement

This speed controller is versatile for applications requiring variable speed from a DC motor. Its specifications dictate suitable use cases and correct installation practices.

Event or Professional Use

In professional or workshop settings, this governor can be integrated into custom machinery, ventilation fan controls, or conveyor belt speed regulators where low-power DC motors are employed. The 5A current limit and 35V maximum voltage define its suitability for light industrial equipment, educational demonstration rigs, or laboratory apparatus. The high 20kHz PWM frequency is typically inaudible, preventing whining noises from motor coils, which is beneficial in quiet environments or consumer-facing devices. Its ability to reverse motor direction by swapping wires adds to its utility in applications requiring bidirectional control.

Everyday Home Use

For home hobbyists and DIY enthusiasts, this unit is ideal for projects like customising computer cooling fan speeds, controlling the motors in model trains or robotics, or varying the speed of small water pumps for gardens or aquariums. The simple knob adjustment makes it accessible for users without programming knowledge. The explicit warning against connecting to AC household power underscores its design for low-voltage DC systems commonly used in hobby electronics, making it a safer option for home workshops powered by batteries or DC adapters.

Benefits and Buying Value

The value of this motor governor lies in its defined performance envelope and the practical control it offers for specific DC motor applications.

Reuse and Low Maintenance

The governor is a solid-state electronic device with no moving parts aside from the potentiometer knob, suggesting potential for reuse across multiple projects with proper care. Its low 7µA standby current means it can be left in a circuit with minimal battery drain when idle. Longevity is supported by adhering to the operating instructions: using the correct DC voltage range and avoiding reverse polarity connections prevent most common causes of failure. This focus on correct usage as the primary maintenance requirement offers a straightforward ownership experience.

Why Choose This Product

Choosing this specific governor is justified by its clear specifications: the 5V-35V input range, 5A output, and 90W power capacity match the needs of users with defined motor parameters. The 20kHz PWM frequency and 1%-100% duty cycle range offer a level of control granularity suitable for precise applications. The compact 30x26x14mm size is a tangible advantage over bulkier controllers when space is limited. It provides a self-contained speed control solution without requiring additional microcontroller programming, which is valuable for straightforward mechanical speed adjustment tasks.
