Color LCD SP80B Handheld Rechargeable Bluetooth Spirometer Lung Monitor with PC Software for FVC FEV1 PEF Lung Function Testing Hospital Clinic Home Use
Color LCD SP80B Handheld Rechargeable Bluetooth Spirometer Lung Monitor with PC Software for FVC FEV1 PEF Lung Function Testing Hospital Clinic Home Use

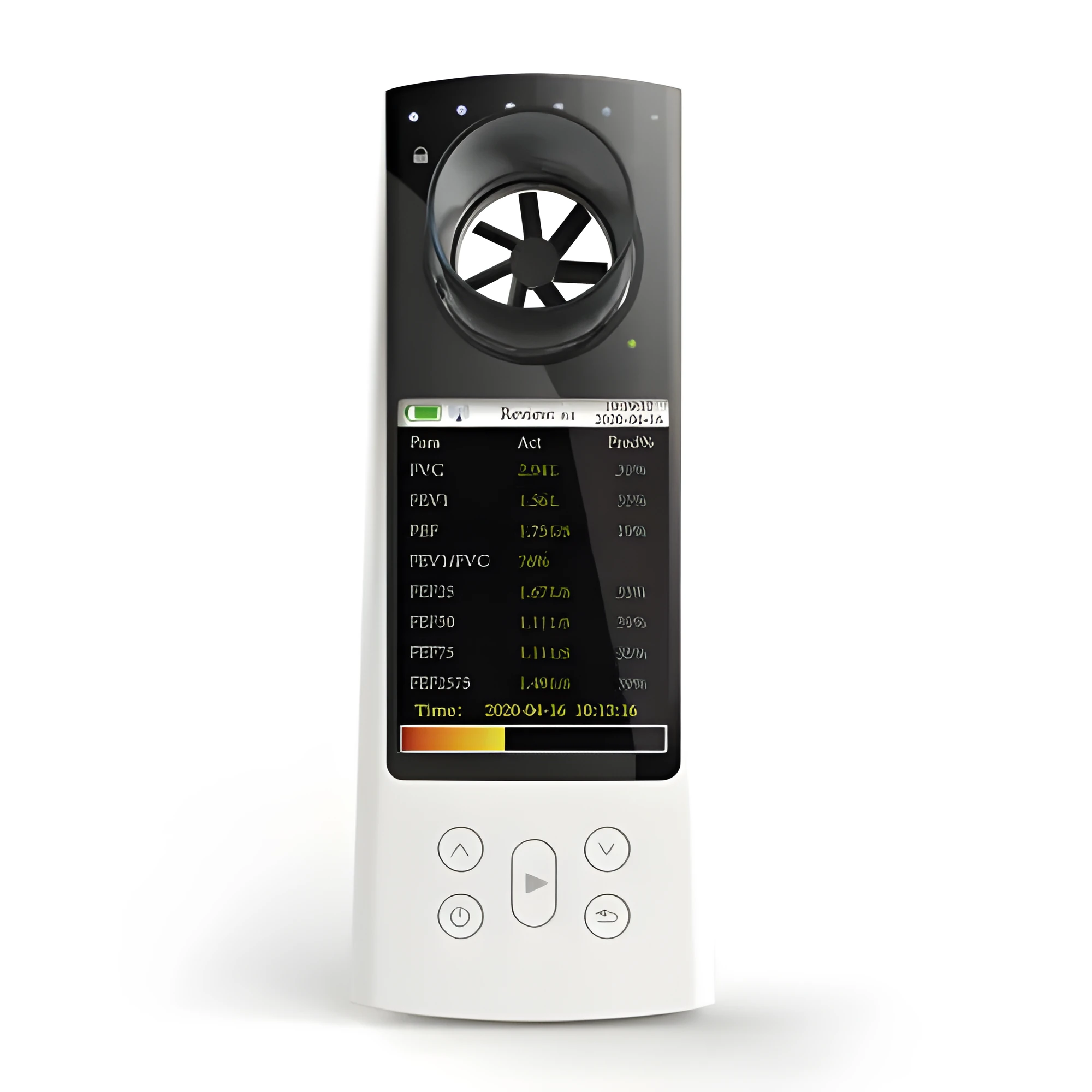

SP80B Handheld Rechargeable Bluetooth Spirometer with Colour LCD and PC Software for Lung Function Monitoring
The SP80B is a handheld spirometer designed for checking lung conditions in hospitals, clinics, and home settings. It employs infrared signal acquisition to measure forced vital capacity (FVC) and related parameters, providing clear data through a 2.8-inch colour LCD. The device connects via Bluetooth or USB cable to PC software, allowing users to store, review, and upload test results. With its rechargeable lithium battery and automatic shutdown, it is practical for routine respiratory monitoring without frequent power management.
Features and Construction
This spirometer combines essential measurement capabilities with straightforward operation and data management features.
Measurement Parameters
The device measures FVC, FEV1, FEV1/FVC ratio, PEF, FEF25, FEF50, FEF75, and FEF2575. Volume range is 0 to 10 L with an accuracy of ±3% or ±0.05 L, and flow range is 0 to 16 L/s with an accuracy of ±5% or ±0.2 L/s. These metrics help assess lung function over time.
Display and Data Handling
The 2.8-inch colour LCD shows flow-volume and volume-time charts. Data can be stored, deleted, uploaded, and reviewed. A trend chart display and health state indication give a quick overview, while the over-limit prompt alerts users to unusual volume or flow readings.
Power and Connectivity
Powered by a rechargeable lithium battery, the device has a working current of 200 mA. It transmits data wirelessly via Bluetooth or through a USB cable to PC software. The real-time clock and battery power indication are shown on screen, and the unit automatically shuts down after two minutes of inactivity.
Uses and Placement
The SP80B is suited for routine lung function testing in a range of environments, with setup for individual user profiles.
Hospital and Clinic Use
In clinical settings, the spirometer supports quick testing with one-button start. User information such as height, age, and sex can be entered to personalise results. The calibration function and disposable mouthpiece help maintain consistent readings between patients.
Home Monitoring
For home use, the device offers easy operation and rechargeable power. Stored data can be shared with a healthcare provider via Bluetooth or USB, supporting ongoing respiratory health tracking. The automatic shutdown feature conserves battery life.
Benefits and Buying Value
The spirometer's combination of accuracy, data connectivity, and reusability provides practical value for routine lung function checks.
Reuse and Low Maintenance
The rechargeable lithium battery eliminates the need for frequent battery changes. The device stores data internally, reducing paperwork, and the USB cable allows easy transfer to a computer. The automatic shutdown saves energy when not in use.
Why Choose This Product
With a measured volume accuracy of ±3% and flow accuracy of ±5%, the SP80B offers reliable readings. The colour LCD and trend chart help users visualise changes over time. Bluetooth and USB connectivity make it straightforward to keep digital records on PC software.
